Clean the Radiator, Condenser and Area Surrounding the Engine - 4-Cylinder Engines

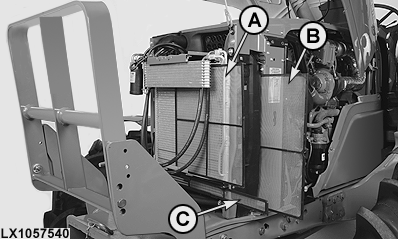

LX1057540-UN-11JUL12

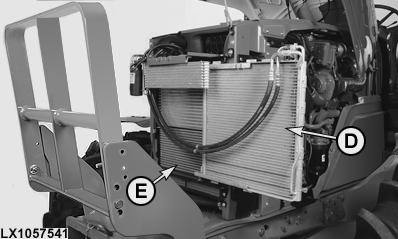

LX1057541-UN-11JUL12

A - Screen

B - Screen

C - Screen

D - Combined Cooler

E - Radiator

For the engine to operate properly, it is also essential to keep the area surrounding the engine clean. Remove accumulations of trash from the area surrounding the engine.

For efficient cooling and air-conditioning, it is also essential to keep the outside of the radiator and condenser clean.

Pull screens (A) or (B) and (C) (if equipped) to the side and remove trash.

Pull combined cooler (D) to the side. Remove trash from radiator (E) and combined cooler (D).

When re-installing the combined cooler, make sure that it is positioned centrally in relation to the radiator and engages in the guide rails properly.

Re-install screens of combined cooler and radiator.
