Check Coolant Level - 4-Cylinder Engines

LX1057544
LX1057544-UN-11JUL12

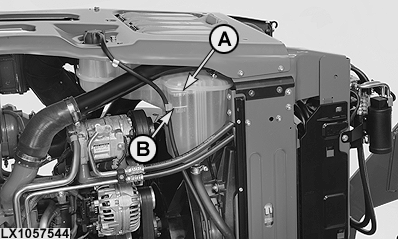

Coolant level should be close to the max. mark (A).

It must under no circumstances fall below the min. mark (B).

Top up, if necessary. See Change the Coolant in Service / Every 6000 Hours.

SS31170,000038E-19-20121001
