Check Transmission/Hydraulic System Oil Level on 6105M to 6140M

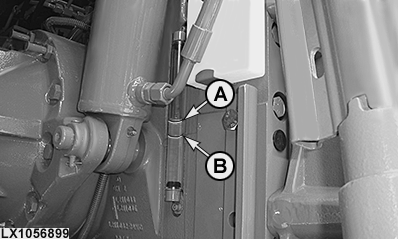

LX1056899
LX1056899-UN-04JUN13

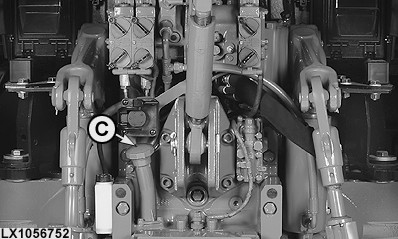

LX1056752
LX1056752-UN-17SEP12

A - Max. Mark

B - Min. Mark

C - Filler Neck

IMPORTANT: Check oil level with cold oil. If possible, check the oil level in the morning after the tractor has been standing overnight.

  1. Park tractor so that it is level.

  2. Engage park lock.

  3. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

  4. Oil level should be between marks (A) and (B) on the sight glass. If it is not, add more oil at filler neck (C).

SS31170,0000390-19-20130604
