Check Engine Oil Level - 4-Cylinder Engines

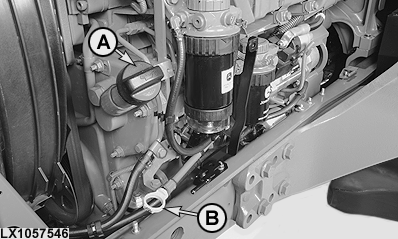

LX1057546-UN-11JUL12

LX1049783-UN-12AUG10

A - Oil Filler Neck

B - Dipstick

Use dipstick (B) to check the level of the engine oil.

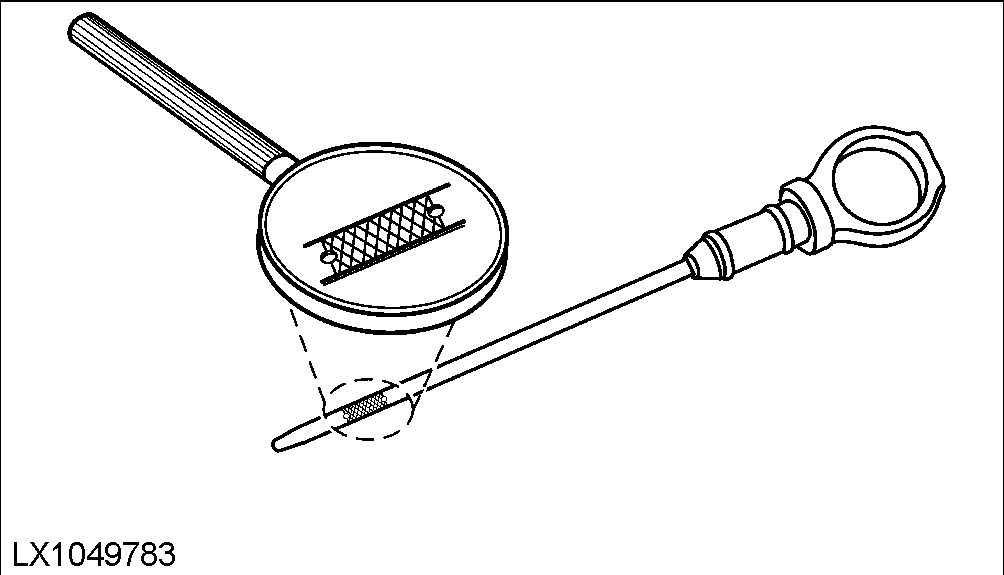

Engine oil level must be in the upper part of the hatched area on the dipstick.

Fill to proper level, if necessary.

Do not start the engine if oil level is below lower mark on dipstick.

If necessary, refill with oil of correct viscosity. See Fuel, Lubricants, Hydraulic Oil and Coolant section.
