Change the Fuel Filters - 4-Cylinder Engines

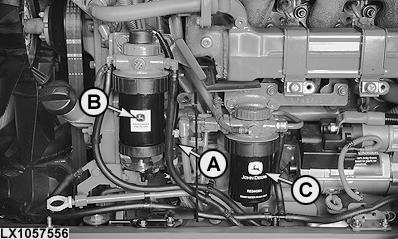

LX1057556-UN-12JUL12

A - Connector

B - Filter Housing of Primary Filter

C - Fuel Filter

Always change the two filters at the same time.

1. Disconnect connector (A) from the water sensor.

2. Unfasten filter housing (B), and remove.

3. Replace the primary filter element and re-install the filter housing.

4. Unfasten fuel filter (C), and remove.

5. Remove water trap and install it on new filter.

6. Attach new filter.

7. Reconnect connector (A).

8. Turn key switch to the right to the first switch position and run the fuel transfer pump for approx. 40 seconds.
