Change the Engine Air Cleaner

LX1057569-UN-12JUL12

NOTE: If a message appears on the digital display indicating that the engine air cleaner is restricted, the primary filter element must be changed that very same day.

After the first message appears, the tractor can still be operated long enough to complete the day's work. However, from the next message onwards, tractor operation is restricted for safety reasons. A filter change is then unavoidable.

The secondary element must be changed no later than at every fourth change of the primary filter element, or every 4500 hours or 5 years. See Service / Every 4500 Hours.

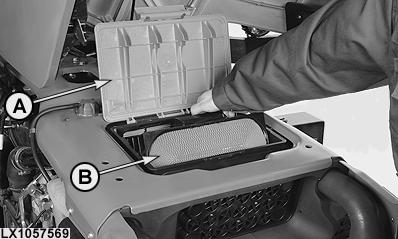

Open flap (A) and remove primary element (B).

Install a new primary element and close the flap.

IMPORTANT: Never run the engine without the primary air cleaner element!

IMPORTANT: Every time the engine primary air cleaner is changed, the cab air filters must be changed also.
