Engine Air Cleaner - Change the Secondary Element

LX1057569-UN-12JUL12

LX1057570-UN-12JUL12

NOTE: The secondary element must be changed no later than at every fourth change of the primary filter element, or every 4500 hours or 5 years.

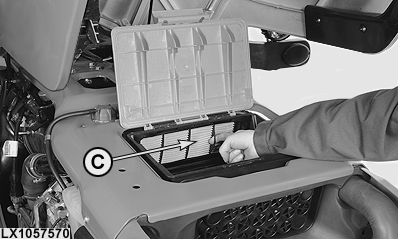

Open flap (A) and remove primary element (B).

Replace the secondary element (C) and make sure it is properly seated.

Install the primary element and close the flap.
