Check the Neutral Start Circuit

Tractors with SyncroPlus™ transmission:

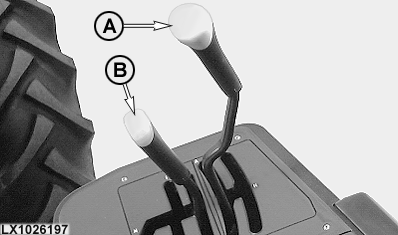

LX1026197-UN-14FEB02

1. Depress the clutch pedal.

2. Move range-shift lever (A) to neutral position.

3. Move gear-shift lever (B) to any gear.

4. Turn key in key switch clockwise to end position. The starting motor must NOT turn over. If it does, see your John Deere™ dealer immediately.

5. Repeat the test in all the other gears.

Tractors with PowrReverser™ transmission:

LX1043004-UN-10JUL07

LX1043001-UN-10JUL07

1. Depress the clutch pedal.

2. Move range-shift lever (A) to neutral position.

3. Move reverse drive lever (B) to any travel direction (forward or reverse).

4. Turn key in key switch clockwise to end position. The starting motor must NOT turn over. If it does, see your John Deere™ dealer immediately.

5. Repeat the test in the other direction of travel.

Tractors with PowrQuad™ transmission:

LX1043004-UN-10JUL07

LX1043003-UN-10JUL07

1. Depress the clutch pedal.

2. Move range-shift lever (A) to neutral position.

3. Move reverse drive lever (B) to "forward" position.

4. Turn key in key switch clockwise to end position. The starting motor must NOT turn over. If it does, see your John Deere™ dealer immediately.

5. Repeat the test in the “reverse” position.

Tractors with PowrQuad™ PLUS transmission and AutoQuad™ PLUS transmission

LX1057572-UN-06SEP12

LX1057571-UN-13JUL12

A - Range-Shift Lever

B - Reverse Drive Lever

1. Move range-shift lever (A) to neutral position.

2. Move the reverse drive lever (B) to forward or reverse position.

3. Start the engine and wait 6-7 seconds. The N display must light up.

4. Depress the clutch and engage any range. Gradually release the clutch pedal. The tractor must NOT start to move. If it does, see your John Deere™ dealer immediately.
