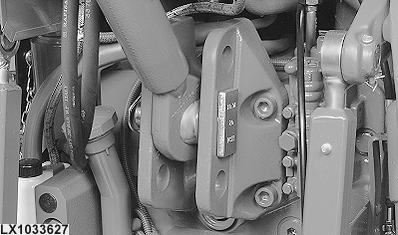

Center Link Positions

LX1033627-UN-19APR04

IMPORTANT: To avoid damaging the center link and its bracket on a tractor with hydraulic center link, operate the center link only in the top and middle bore of the center link bracket.

The center link can be attached to the tractor in any one of three different positions.

The lowest position provides maximum tilt angle but less lifting force and should be used when working with a plow.

The highest position provides greater lifting force and minimum tilt angle, and can be used when working with machines such as direct drills.
