Front PTO - Change Oil (If Equipped)

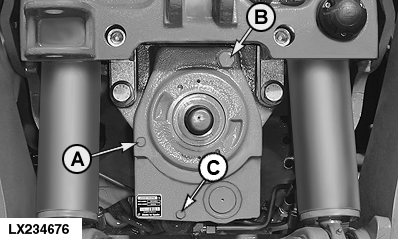

LX234676-UN-20APR15

NOTE: If swarf or similar particles become apparent, the PTO clutch must be reconditioned by your John Deere dealer.

At every oil change, also change the oil filter.

Take out screws (A) and (B).

Remembering to include a new seal, install oil drain screw (C) and tighten to 20 N·m (15 lb.-ft.).

Add approx. 2.6 liters (0.69 U.S.gal.) of fresh transmission/hydraulic oil to the PTO housing at the bore for screw (B) until oil emerges from bore (A).

Remembering to include a new seal, install screw (A) and tighten to 20 N·m (15 lb.-ft.).

Remembering to include a new seal, install screw (B) and tighten to 40 N·m (30 lb.-ft.).
