Additional Oil Reservoir - on 6150M and 6170M Tractors

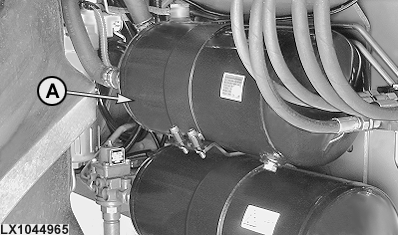

LX1044965-UN-29FEB08

An additional oil reservoir (A) allows more oil to be withdrawn.

The maximum amount of oil that may be withdrawn is listed below.

Maximum permissible oil withdrawal
32 L (8.5 U.S.gal.)

The additional oil may be used with large tipping trailers and in other applications which require a larger amount of oil.

NOTE: An additional oil reservoir brings advantages compared with overfilling of the transmission. See Oil Withdrawal in the Specifications section.
