Lights (Tractors with Cab)

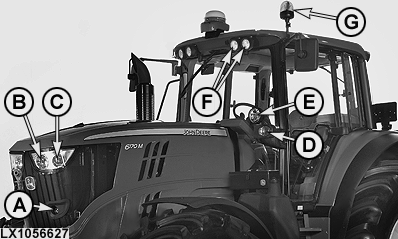

LX1056627-UN-25JUN12

LX1056637-UN-26JUN12

A	Headlights, Low Beam (on Both Sides of Engine Hood)
B	Headlights, High Beam (on Both Sides of Engine Hood)
C	Worklights1 (on Both Sides of Engine Hood)
D	Turn Signal and Clearance Lights (on Both Sides of Cab Frame)
E	Additional Headlight1 (Low Beam and High Beam) or Worklight1 (on Both Sides of Cab Frame)
F	Worklights1 (on Both Sides of Roof, Side-Facing)
G	Beacon Light1
H	Worklights1 (on Rear of Roof, Both Sides)
I	Tail Lights, Brake Lights, Turn-Signal Lights (on Rear of Fenders, Both Sides)
J	Seven-Terminal Trailer Socket for Lights
K	License Plate Light

NOTE: H9 bulbs must NOT be used in front corner worklights (C).
