Check Transmission/Hydraulic System Oil Level (6150M and 6170M)

LX1056909
LX1056909-UN-04JUN13

LX1056731
LX1056731-UN-20JUL12

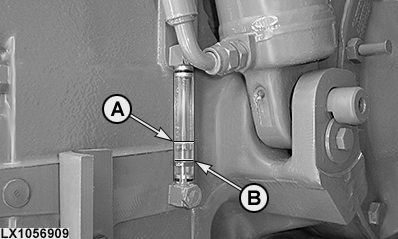

A - Max. Mark

B - Min. Mark

C - Filler Neck

IMPORTANT: Check oil level with cold oil. If possible, check the oil level in the morning after the tractor has been standing overnight.

  1. Park tractor so that it is level.

  2. Engage park lock.

  3. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

  4. Oil level should be between marks (A) and (B) on the sight glass. If it is not, add more oil at filler neck (C).
