Dimensions - 6150M and 6170M Tractors

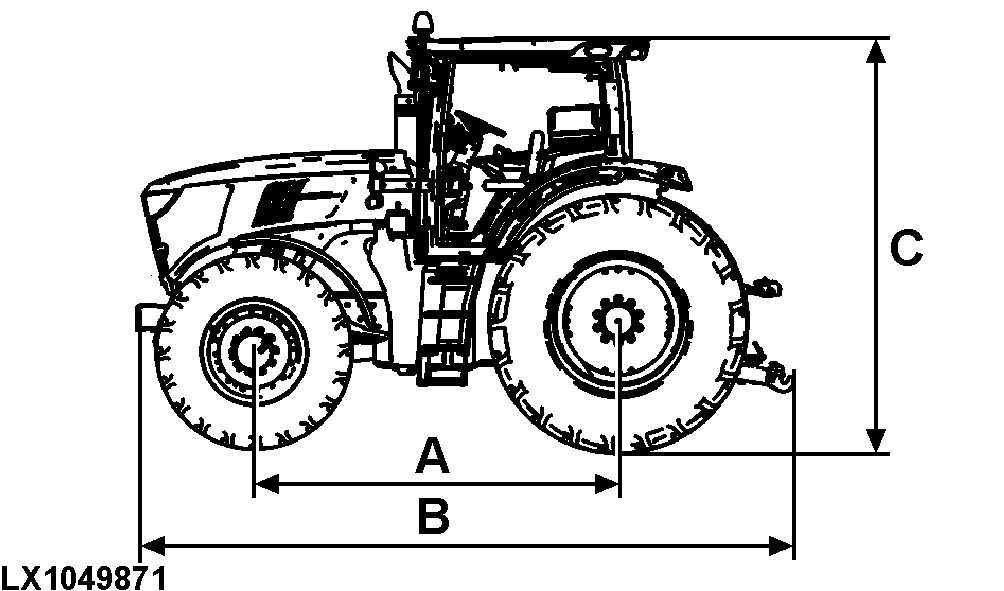

LX1049871-UN-26JAN11

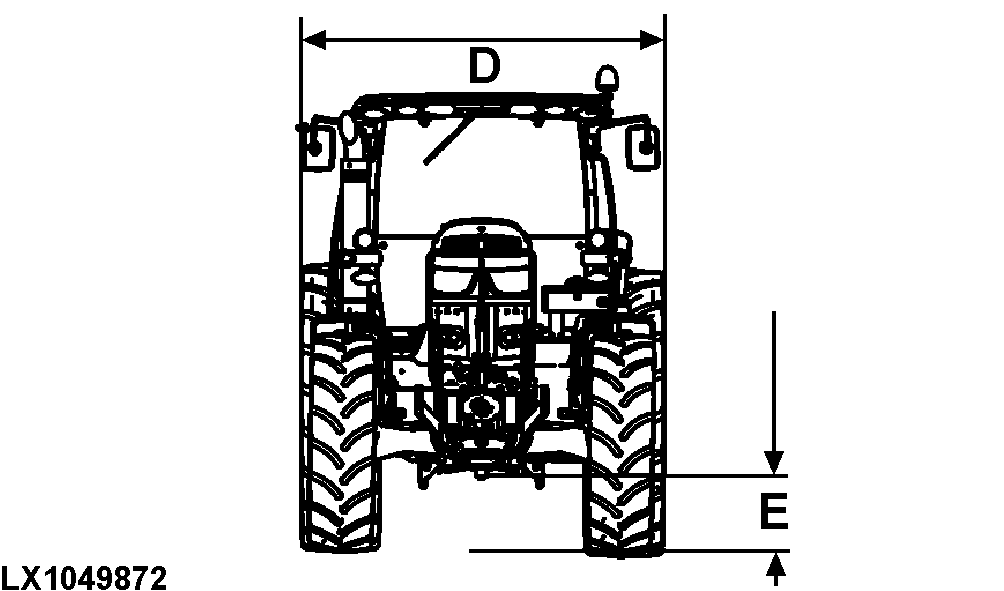

LX1049872-UN-26JAN11

	6150M		6170M
	mm	in.	mm	in.
A - Wheel Base..............	2765	108.9	2800	110.2
B - Length
• Basic weight 110 kg to draft link in horizontal position ..............	4868	191.7	4986	196.3
• Front weight 1150 kg to draft link in horizontal position ..............	5288	208.2	5406	212.8
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 825 ..............	2930	115.4	—	—
• SRI 875 ..............	2980	117.3	—	—
• SRI 925 ..............	3030	119.3	3103	122.2
D - Width
• Front axle - flange to flange ..............	1780	70.1	1780	70.1
• Front axle - maximum tread width without extension ..............	2250	88.6	2250	88.6
• Rear axle - flange to flange ..............	1664	65.5	1664	65.5
• Maximum width for road travel ..............	2550	100.4	2550	100.4
E - Ground Clearance
- Maximum ground clearance at front-wheel drive axle, with front tires with an SRI of:
• SRI 625 ..............	478	18.8	—	—
• SRI 650 ..............	503	19.8	—	—
• SRI 675 ..............	528	20.8	—	—
• SRI 700 ..............	553	21.8	545	21.5
- Maximum ground clearance at differential housing with drawbar, with rear tires with an SRI of:
• SRI 825 ..............	482	19.01	—	—
• SRI 875 ..............	532	20.91	—	—
• SRI 925 ..............	582	22.91	528	20.81

IMPORTANT: The ground clearance or height of the tractor depends on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
