Two-Piece Front Axle — Tread Widths for Front Wheels with Rims for 8 Positions - Tractor 6170M

LX1057502-UN-26MAY15

Two-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop - Front Axle 750” and “Preventing Front Wheel or Fender Contact with Tractor Components” in this Section.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

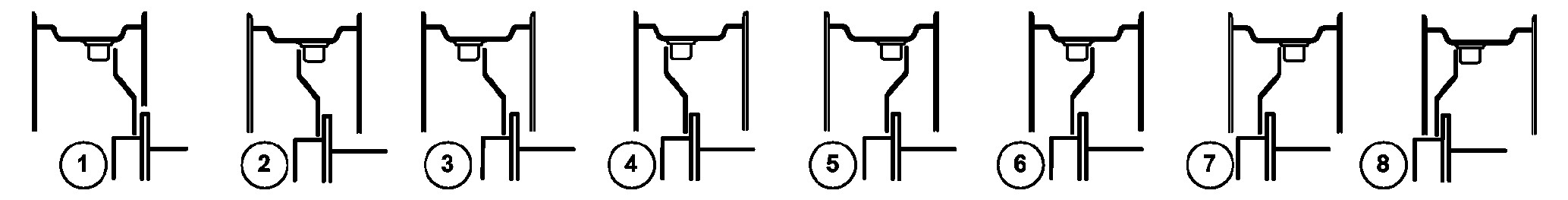

LX1056921-UN-21AUG13

		Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
16.9R30	mm	1916	2120**	2016	1916	1812	1720	1616	1516*	1412*
	(in.)	(75.43)	(83.46)**	(79.37)	(75.43)	(71.34)	(67.72)	(63.62)	(59.68)*	(55.59)*
420/85R30	mm	1916	2120**	2016	1916	1812	1720	1616	1516*	1412*
	(in.)	(75.43)	(83.46)**	(79.37)	(75.43)	(71.34)	(67.72)	(63.62)	(59.68)*	(55.59)*
480/70R30	mm	1916	2120**	2016**	1916	1812	1720	1616	1516*	1412*
	(in.)	(75.43)	(83.46)**	(79.37)**	(75.43)	(71.34)	(67.72)	(63.62)	(59.68)*	(55.59)*
540/65R30	mm	1916	2120**	2016**	1916	1812	1720	1616*	1516*	1412*
	(in.)	(75.43)	(83.46)**	(79.37)**	(75.43)	(71.34)	(67.72)	(63.62)*	(59.68)*	(55.59)*
600/65R28	mm	1880	2156**	2052**	1880	1776	1756	1652*	1480*	1376*
	(in.)	(74.02)	(84.88)**	(80.79)**	(74.02)	(69.92)	(69.13)	(65.04)*	(58.27)*	(54.17)*
* Tread width and adjustment of the steering stop is possible only with steering stop AL180127. See also “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop” for the relevant front axle. ** Total vehicle width larger than 2.55 m (100 in.); the regional road traffic licensing regulations must be observed.
