Two-Piece Front Axle — Tread Widths for Front Wheels with Rims for 2 Positions - 6150M

LX1057502-UN-26MAY15

Two-Piece Front Axle

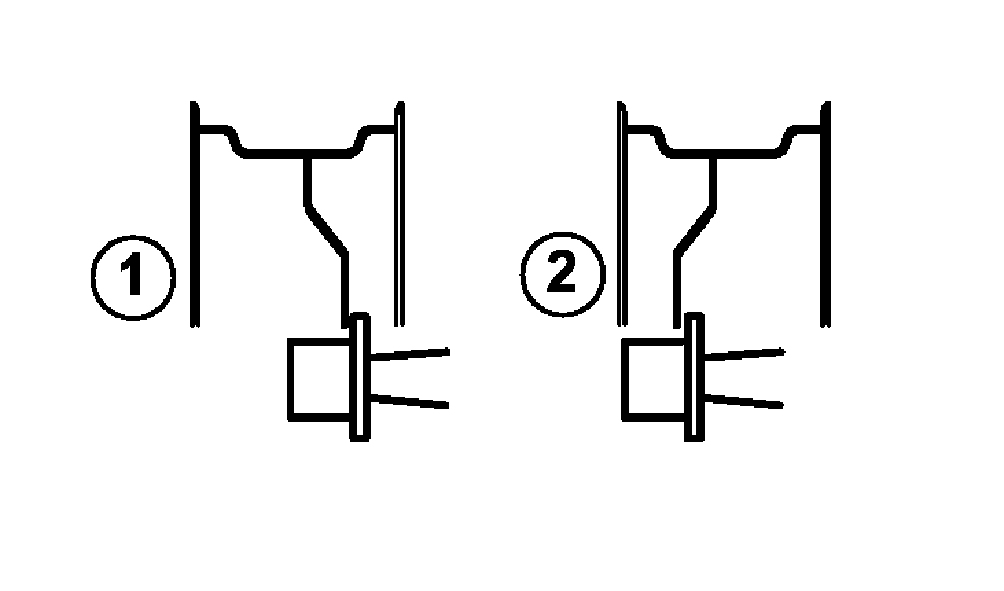

LX1053400-UN-07MAR12

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop - Front Axle 745” and “Preventing Front Wheel or Fender Contact with Tractor Components” in this Section.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

		Tread width setting on delivery	Tread width setting front wheels Arrangement of rim and wheel dish					Tread width setting on delivery	Tread width setting front wheels Arrangement of rim and wheel dish
Tires:			1	2		Tires:			1	2
14.9R28	mm	1816	1816	1724		440/80R24 -R4	mm	1816	1816	1720
	in.	71.5	71.5	67.9			in.	71.5	71.5	67.7
16.9R24	mm	1816	1816	1720		440/80R28 -R4	mm	1814	1814	1722
	in.	71.50	71.50	67.7			in.	71.4	71.4	67.8
16.9R28	mm	1814	1814	1722		480/65R28	mm	1816	1816	1724
	in.	71.4	71.4	67.8			in.	71.5	71.5	67.9
380/85R28	mm	1816	1816	1724		480/70R24	mm	1816	1816	1720
	in.	71.5	71.5	67.9			in.	71.5	71.5	67.7
400/80R28 -R4	mm	1816	1816	1724		480/70R28	mm	1814	1814	1722
	in.	71.5	71.5	67.9			in.	71.4	71.4	67.8
420/70R28	mm	1816	1816	1724		540/65R24	mm	1816	1816	1720
	in.	71.5	71.5	67.9			in.	71.5	71.5	67.7
420/85R24	mm	1816	1816	1720		540/65R28	mm	1814	1814	1722
	in.	71.5	71.5	67.7			in.	71.4	71.4	67.8
420/85R28	mm	1814	1814	1722
	in.	71.4	71.4	67.8
