Two-Piece Front Axle — Tread Widths for Front Wheels with Rims for 16 Positions - Tractor 6150M

LX1057502-UN-26MAY15

Two-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop - Front Axle 745” and “Preventing Front Wheel or Fender Contact with Tractor Components” in this Section.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

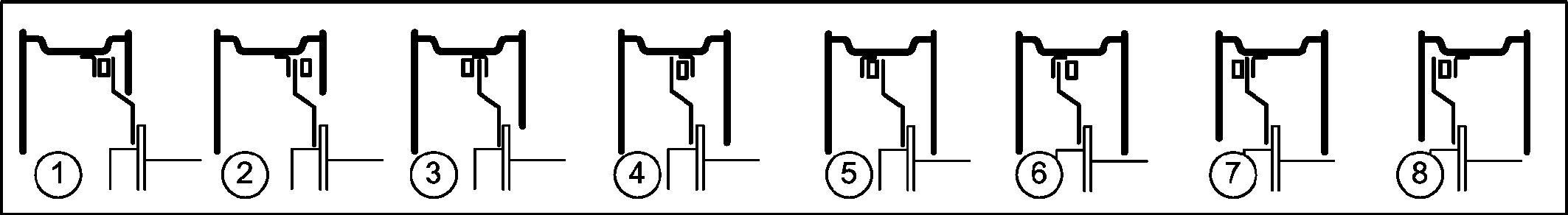

LX1053419-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

		Tread width on delivery	Tread width setting front wheels Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
14.9R28	mm	1818	2116**	2086	2052	2022	1912	1882	1848	1818
	in.	71.57	83.31**	82.13	80.79	79.61	75.28	74.09	72.76	71.57
16.9R24	mm	1818	2118**	2088**	2052**	2022	1914	1884	1848	1818
	in.	71.57	83.39**	82.20**	80.79**	79.61	75.35	74.17	72.76	71.57
16.9R28	mm	1816	2114**	2084**	2050**	2020	1910	1880	1846	1816
	in.	71.50	83.23**	82.05**	80.71**	79.53	75.20	74.02	72.68	71.50
380/85R28	mm	1818	2116**	2086	2052	2022	1912	1882	1848	1818
	in.	71.57	83.31**	82.13	80.79	79.61	75.28	74.09	72.76	71.57
420/70R28	mm	1818	2116**	2086**	2052	2022	1912	1882	1848	1818
	in.	71.57	83.31**	82.13**	80.79	79.61	75.28	74.09	72.76	71.57
420/85R24	mm	1818	2118**	2088**	2052	2022	1914	1884	1848	1818
	in.	71.57	83.39**	82.20**	80.79	79.61	75.35	74.17	72.76	71.57
420/85R28	mm	1816	2114**	2084**	2050	2020	1910	1880	1846	1816
	in.	71.50	83.23**	82.05**	80.71	79.53	75.20	74.02	72.68	71.50
480/65R28	mm	1818	2116**	2086**	2052**	2022**	1912	1882	1848	1818
	in.	71.57	83.31**	82.13**	80.79**	79.61**	75.28	74.09	72.76	71.57
480/70R24	mm	1818	2118**	2088**	2052**	2022**	1914	1884	1848	1818
	in.	71.57	83.39**	82.20**	80.79**	79.61**	75.35	74.17	72.76	71.57
480/70R28	mm	1816	2114**	2084**	2050**	2020**	1910	1880	1846	1816
	in.	71.50	83.23**	82.05**	80.71**	79.53**	75.20	74.02	72.68	71.50
540/65R24	mm	1818	2118**	2088**	2052**	2022**	1914	1884	1848	1818
	in.	71.57	83.39**	82.20**	80.79**	79.61**	75.35	74.17	72.76	71.57
540/65R28	mm	1816	2114**	2084**	2050**	2020**	1910	1880	1846	1816
	in.	71.50	83.23**	82.05**	80.71**	79.53**	75.20	74.02	72.68	71.50
270/95R38	mm	1816	2120	2090	2050	2020	1916	1886	1846	1816
	in.	71.50	83.46	82.28	80.71	79.53	75.43	74.25	72.68	71.50
* Tread width and adjustment of the steering stop is possible only with steering stop AL180127. See also “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop” for the relevant front axle. ** Total vehicle width larger than 2.55 m (100 in.); the regional road traffic licensing regulations must be observed.

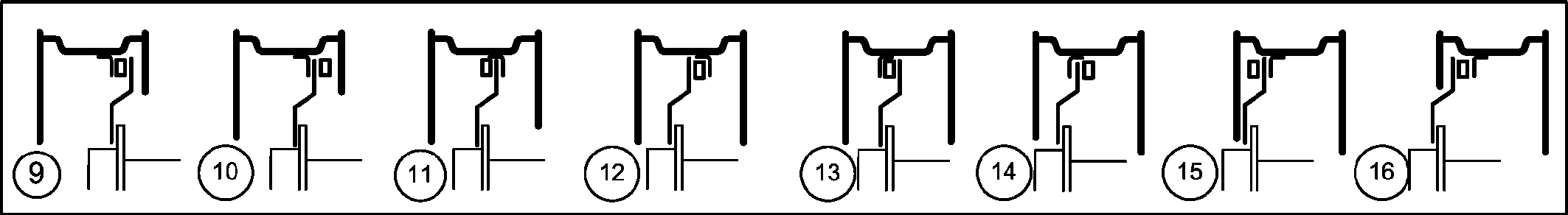

LX1053420-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

		Tread width on delivery	Tread width setting front wheels Arrangement of rim and wheel dish
Tires:			9	10	11	12	13	14	15	16
14.9R28	mm	1818	1716	1686	1652	1622	1512	1482	1448*	1418*
	in.	71.57	67.56	66.38	65.04	63.86	59.53	58.35	57.01*	55.83*
16.9R24	mm	1818	1718	1688	1652	1622	1514	1484*	1448*	1418*
	in.	71.57	67.64	66.46	65.04	63.86	59.61	58.43*	57.01*	55.83*
16.9R28	mm	1816	1714	1684	1650	1620	1510*	1480*	1446*	1416*
	in.	71.50	67.48	66.30	64.96	63.78	59.45*	58.27*	56.93*	55.75*
380/85R28	mm	1818	1716	1686	1652	1622	1512	1482	1448	1418*
	in.	71.57	67.56	66.38	65.04	63.86	59.53	58.35	57.01	55.83*
420/70R28	mm	1818	1716	1686	1652	1622	1512	1482*	1448*	1418*
	in.	71.57	67.56	66.38	65.04	63.86	59.53	58.35*	57.01*	55.83*
420/85R24	mm	1818	1718	1688	1652	1622	1514	1484	1448*	1418*
	in.	71.57	67.64	66.46	65.04	63.86	59.61	58.43	57.01*	55.83*
420/85R28	mm	1816	1714	1684	1650	1620	1510*	1480*	1446*	1416*
	in.	71.50	67.48	66.30	64.96	63.78	59.45*	58.27*	56.93*	55.75*
480/65R28	mm	1818	1716	1686	1652	1622	1512*	1482*	1448*	1418*
	in.	71.57	67.56	66.38	65.04	63.86	59.53*	58.35*	57.01*	55.83*
480/70R24	mm	1818	1718	1688	1652	1622	1514*	1484*	1448*	1418*
	in.	71.57	67.64	66.46	65.04	63.86	59.61*	58.43*	57.01*	55.83*
480/70R28	mm	1816	1714	1684	1650	1620	1510*	1480*	1446*	1416*
	in.	71.50	67.48	66.30	64.96	63.78	59.45*	58.27*	56.93*	55.75*
540/65R24	mm	1818	1718	1688	1652	1622	1514*	1484*	1448*	1418*
	in.	71.57	67.64	66.46	65.04	63.86	59.61*	58.43*	57.01*	55.83*
540/65R28	mm	1816	1714	1684	1650*	1620*	1510*	1480*	1446*	1416*
	in.	71.50	67.48	66.30	64.96*	63.78*	59.45*	58.27*	56.93*	55.75*
270/95R38	mm	1816	1720	1690	1650	1620	1516	1486	1446	1416
	in.	71.50	67.72	66.54	64.96	63.78	59.68	58.50	56.93	55.75
* Tread width and adjustment of the steering stop is possible only with steering stop AL180127. See also “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop” for the relevant front axle. ** Total vehicle width larger than 2.55 m (100 in.); the regional road traffic licensing regulations must be observed.
