Overview — Fuses and Relays (LCS) and (FRM) - Tractors with Cab from Model Year 2012

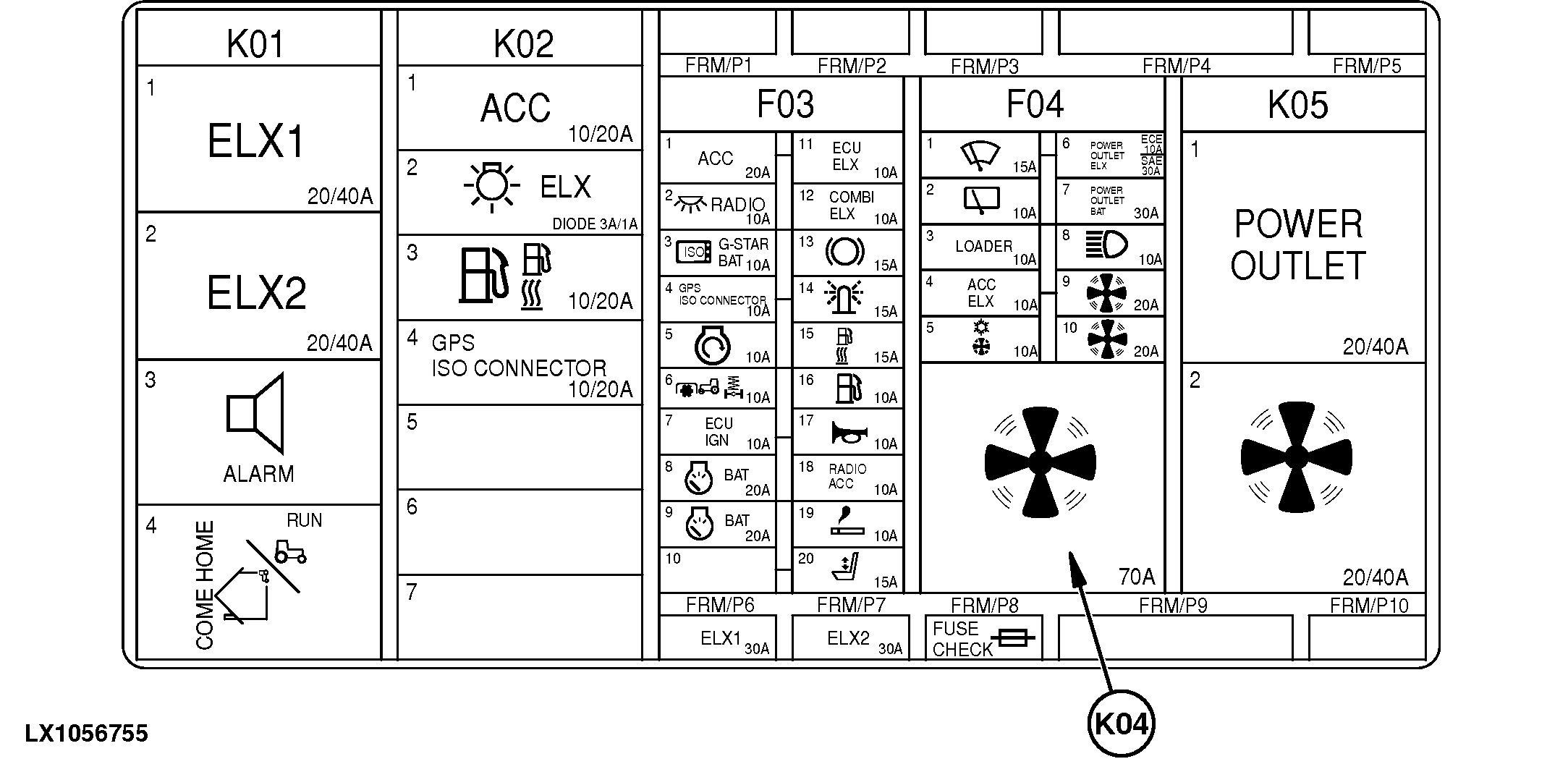

LX1056755-UN-27SEP12
Fuses and Relays (LCS) and (FRM) - Tractors with Cab from Model Year 2012
|
Fuses and Relays (LCS) and (FRM) - Tractors with Cab from Model Year 2012 |
|||||
|---|---|---|---|---|---|
|
Fuse no. |
Capacity (amps) |
Designation |
Fuse no. |
Capacity (amps) |
Designation |
|
F03LCS/01 |
20 amp |
Power Supply for Accessories (ACC) |
F04LCS/01 |
10 amp |
Windshield Wiper |
|
F03LCS/02 |
10 amp |
Dome Light, Access-Step Light, Radio |
F04LCS/02 |
10 amp |
Rear Window Wiper |
|
F03LCS/03 |
10 amp |
GreenStar™ (AMS) |
F04LCS/03 |
10 amp |
Connector for Front Loader (X037-1F) |
|
F03LCS/04 |
10 amp |
GreenStar™ (AMS) |
F04LCS/04 |
10 amp |
Connector for Accessories (X037-3F) |
|
F03LCS/05 |
10 amp |
Key Switch |
F04LCS/05 |
10 amp |
Fan, Air-Conditioning System |
|
F03LCS/06 |
10 amp |
Front Chassis Control Unit |
F04LCS/06 |
30 amp 10 amp |
3-Pin Socket, Power Outlet Strip, 7-Pin Socket (SAE) 3-Pin Socket, Power Outlet Strip (ECE) |
|
F03LCS/07 |
10 amp |
Engine Control Unit |
F04LCS/07 |
30 amp |
3-Pin Socket, Power Outlet Strip |
|
F03LCS/08 |
20 amp |
Instrument Unit, Warning Light |
F04LCS/08 |
10 amp |
Lights |
|
F03LCS/09 |
20 amp |
Instrument Unit, Immobilizer Control Unit |
F04LCS/09 |
20 amp |
Fan Motor |
|
F03LCS/10 |
— |
Not Used |
F04LCS/10 |
20 amp |
Fan Motor |
|
F03LCS/11 |
10 amp |
Engine Control Unit, Immobilizer Control Unit |
F01FRM/P1 |
Spare Fuse |
|
|
F03LCS/12 |
10 amp |
Main Control Unit |
F01FRM/P2 |
Spare Fuse |
|
|
F03LCS/13 |
15 amp |
Brake Pedal Sensor Unit |
F01FRM/P3 |
Spare Fuse |
|
|
F03LCS/14 |
15 amp |
Beacon Lights |
F01FRM/P4 |
Spare Fuse |
|
|
F03LCS/15 |
15 amp |
Fuel Preheater |
F01FRM/P5 |
Spare Fuse |
|
|
F03LCS/16 |
10 amp |
Fuel Pump |
F01FRM/P6 |
30 amp |
Power Supply for Electronics |
|
F03LCS/17 |
10 amp |
Horn |
F01FRM/P7 |
30 amp |
Power Supply for Electronics |
|
F03LCS/18 |
10 amp |
Radio |
F01FRM/P8 |
—— |
Fuse Tester |
|
F03LCS/19 |
10 amp |
Cigarette Lighter |
F01FRM/P9 |
Spare Fuse |
|
|
F03PLB/20 |
15 amp |
Operator's Seat |
F01FRM/P10 |
Spare Fuse |
|
|
Relay no. |
Rating (amps) |
Designation |
Relay no. |
Rating (amps) |
Designation |
|
K01LCS/1 |
20/40 amps |
Relay for Power Supply to Electronics (ELX1) |
K02LCS/1 |
10/20 amps |
Relay for power supply to accessories (ACC) |
|
K01LCS/2 |
20/40 amps |
Relay for Power Supply to Electronics (ELX2) |
K02LCS/2 |
1 amp |
Diode for Power Supply to Electronics |
|
K01LCS/3 |
— |
Acoustic Alarm, Component Information |
K02LCS/2 |
3 amp |
Diode for Acoustic Alarm |
|
K01LCS/4 |
— |
Connector for Come-Home Function, Component Information |
K02LCS/3 |
10/20 amps |
Relay for fuel pump and fuel preheater |
|
K02LCS/4 |
10/20 amps |
Relay for GreenStar™ (AMS) |
|||
|
K04LCS/1 |
70 amp |
Fan Relay |
K02LCS/5 |
Not Used |
|
|
K02LCS/6 |
Not Used |
||||
|
K05LCS/1 |
20/40 amps |
Relay for 3-Terminal Socket |
K02LCS/7 |
Not Used |
|
|
K05LCS/2 |
20/40 amps |
Relay for Air-Conditioning System |
|||
|
