Fuses and Relays (LCS) and (FRM), General Information - Tractors with Cab

General Information

LX1058125-UN-06SEP12

LX1058126-UN-06SEP12

Fuse and Relay Box (LCS) or (FRM)

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than specified on the arrangement diagram.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

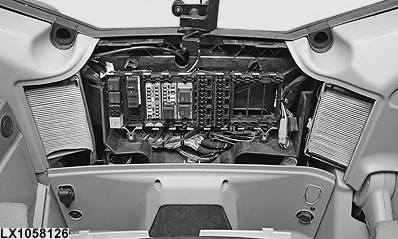

The fuse box of the FRaMe circuit (FRM) is located within the frame of the fuse and relay box (LCS) behind the operator's seat, below the rear window.

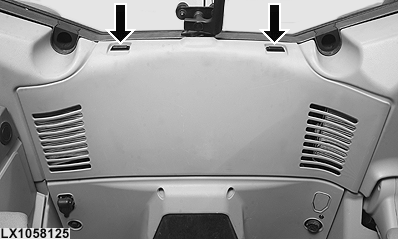

Remove fuse and relay box cover (LCS).

For assignment of the plug-in positions of the fuses and relays of the tractor's model year, refer to “Overview — Fuses and Relays (LCS) and (FRM)” on the following pages.
