Engaging the PTO

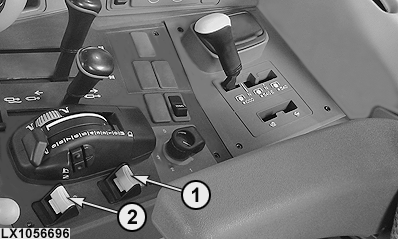

LX1056696-UN-05SEP12

Tractor with Cab Shown

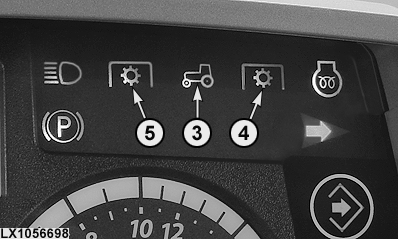

LX1056698-UN-05SEP12

1 - Rear PTO Switch

2 - Front PTO Switch

3 - PTO Indicator Light

4 - Rear PTO Indicator Light

5 - Front PTO Indicator Light

CAUTION: Always disengage the PTO when not in use.

CAUTION: High-inertia implements do not come to a standstill the moment a PTO is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

To operate the PTO, push the switches (1) and (2) down and then forward. The PTO starts up, and the warning lights (3) and (4), or (3) and (5) go on.

The current speeds of the PTOs are displayed on the PTO page of the digital display.

To switch off the PTOs, pull switch (1) or (2) back. Indicator lights (3) and (4) or (3) and (5) go out.

NOTE: If the motor is switched off while the PTO is running and then started again, then the PTO will not start up again.

In the case of the rear PTO, indicator lights (3) and (4) remain on.

In the case of the front PTO, indicator light (5) goes out but indicator light (3) remains on.

To continue working, switch off the PTO and switch it on again.
