Fuses and Relays of Electrical Starting Aid (without Exhaust Cleaning System)

LX234749-UN-01OCT15

F30 - 70 A Fuse

F38 - 10 A Fuse

K046/K067 - 70 A Relay

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

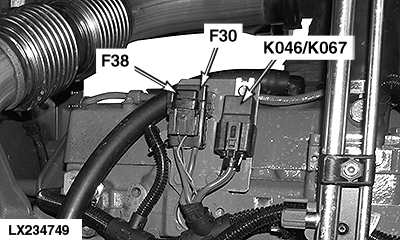

Fuses (F30) and (F38) and relay (K046/K067) are located on the right side of the engine.

Open the engine hood.

Check fuses (F30) and (F38) or the relay (K046/K067), and replace if necessary.

Lower hood.
