Selective Control Valves - Disconnect Hydraulic Hoses

X9811-UN-23AUG88

LX234751-UN-14OCT15

LX234608-UN-24MAR15

(Mechanical) Multi-Function Lever

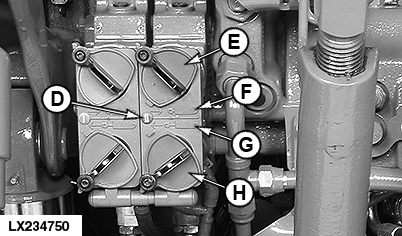

LX234750-UN-14OCT15

A - SCV Locking Lever

B - Locking Ring, Mechanical Multi-Function Lever

D - Identification Number

E - Retract Coupler

F - Retract Icon

G - Extend Icon

H - Extend Coupler

CAUTION: Avoid personal injury. Before implements are detached, hydraulic hoses are disconnected, and to avoid unintentional implement movement, observe the following:

• Lower implements to the ground.

• Set selective control valve controls to neutral position and lock them.

1. Lower implement to ground.

2. With the ignition on or with the engine running, bring the selective control valves briefly into the "Extend" and "Retract" positions.

3. Lock out SCV controls:

   • Bring the SCV control lever into the neutral position and lock with the levers (A).
   • Bring the (mechanical) multi-function lever¹ into the neutral position and turn the locking ring (B) in a clockwise direction.



4. Switch off the engine and engage the park lock.

5. IMPORTANT: Forcing or jerking SCV hoses when disconnecting can damage hose ends and SCV couplers.

   Pull hoses straight out from couplers.

6. Install dust caps on couplers and tighten them.
