Hydraulic Center Link (If Equipped)

LX234756-UN-28OCT15

LX234758-UN-28OCT15

Adjust upper limit gradually

LX234759-UN-28OCT15

LX234760-UN-29OCT15

A - Connection of the Upper Lead of the Center Link to the 3rd SCV Top (Retract)

B - Connection of the LowerLead of the Center Link to the 3rd SCV Bottom (Extend)

C - Depth Control Regulator

D - Height-Limit Control

E - Control Lever 3rd SCV

F - Guide Rail

IMPORTANT: Check the following before putting into operation:

• To avoid damaging the center link and its bracket, operate the hydraulic center link only in the top and middle bore of the center link bracket.

• When raising the implement, make sure that it does not come in contact with the tractor.

• Pay attention to the settings for center link length and maximum raising height.

The length of the center link can be adjusted when seated in the operator's seat using the 3rd SCV.

Attached to the hydraulic center link is a measuring rod that is intended to facilitate adjustment of the center link when in operation. For this purpose, the rod has marks on it to assist in positioning. The rod is not suitable for use as a handhold when in transport or during installation and removal.

Route the hydraulic hoses so that the loops face away from coupling area of the center link.

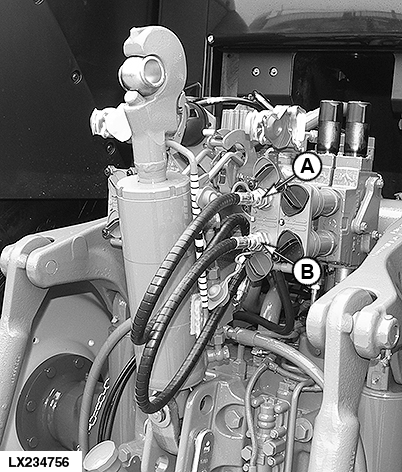

Connect top hydraulic hose (A) of the center link with the top connection of the 3rd SCV.

Connect bottom hydraulic hose (B) of the center link with the bottom connection of the 3rd SCV.

IMPORTANT: Carry out the setting of the MAX raising height very carefully and keep sufficient clearance to components of the tractor. Remember that retracting the hydraulic center link brings the implement closer to the tractor.

Raise the implement all the way with regulator (C) of the depth control. Carefully adjust regulator (D) of the height limit in the MAX until the maximum possible raising height for the implement has been reached.

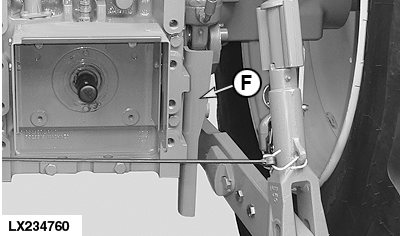

If severe wear occurs at guide rails (F) on the PTO housing, the rails need to be replaced with new ones in order to prevent the center link from coming into contact with the hydraulic block.

IMPORTANT: Retract hydraulic center link when not in use.

When attaching the center link to or removing it from the tractor, remember that the center link is very heavy.
