Trailering Lights (If Equipped)

Applies only to regions where these warning lights are mandatory.

CAUTION: To prevent possible accidents, always operate trailering lights when traveling on highway or public roads while towing an implement or trailer.

LX1057757
LX1057757-UN-31AUG12

LX1057774
LX1057774-UN-15FEB13

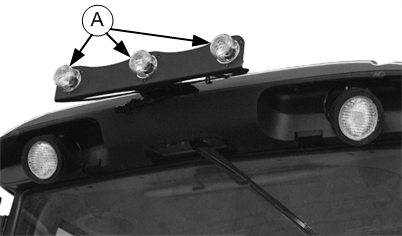

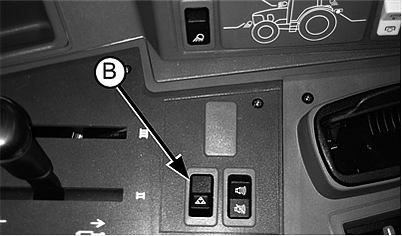

Lights (A) are located at the front of the roof. They are activated by switch (B).

LX1057776
LX1057776-UN-15FEB13

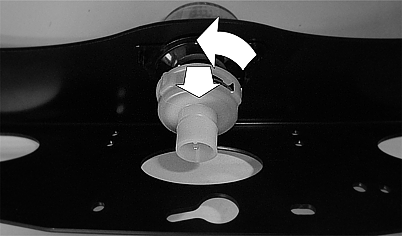

To gain access to the light bulb, turn bulb socket counterclockwise and pull it out. Push in and turn light bulb counterclockwise to remove.

Install new bulb in reverse order.

OULXBER,0002069-19-20130218
