Decals for Recommended Lifting Points (if equipped)

LX1057761
LX1057761-UN-12SEP12

LX1057765
LX1057765-UN-14SEP12

RXA0127282
RXA0127282-UN-23JUL12

Decal

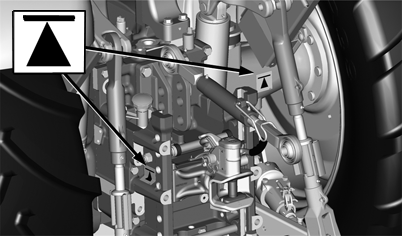

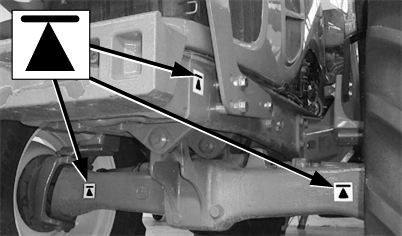

In certain regions, the marking of recommended lifting points is mandatory. Tractors delivered in such regions are marked accordingly. Lifting points are indicated by decals located at the front axle, the front end of main frame, at trailer hitch and at both final drive housings of rear axle.

Always use appropriate and suitable lifting device.

IMPORTANT: Use approved lifting equipment only. Jack up tractor on firm, level ground only. Before doing any further work on the tractor, first secure it using suitable support stands.

See also “Jack Up the Tractor - Lifting Points”.
