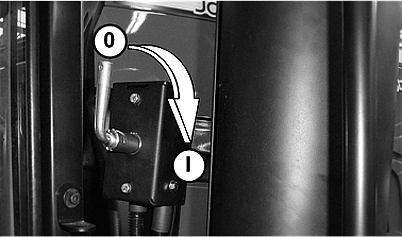

Mechanical Battery Cut-Off Switch (if equipped)

LX1057775-UN-15FEB13

I - ON

0 - OFF

CAUTION: After operating under high engine load, the area around the muffler becomes very warm. Remember this when operating the battery cut-off switch.

Never cut off the battery while the engine is running. This may result in serious damage to the electrical components of the tractor

IMPORTANT: If the tractor is not used for a lengthy period, battery cut-off switch must be set to the 0 position. If the battery is not disconnected (I position), it may be discharged.

The lever for battery cut-off is located at the right cab entrance. With the lever in 0 position, the battery is disconnected.

To disconnect: Switch off engine and ignition. Then turn battery cut-off lever counterclockwise to 0 position.

To reconnect: Turn lever clockwise to I position.

NOTE: The lever can be removed in position 0.

Lever can be inserted only if it is pointing upward (0 position).
