Checking Coolant Level - 6-Cylinder Engines

LX1057545
LX1057545-UN-11JUL12

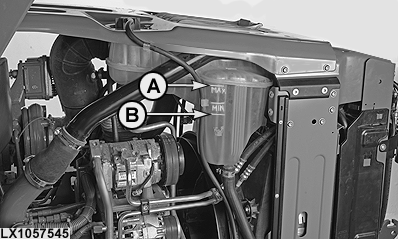

Coolant level should be close to the max. mark (A).

It must under no circumstances fall below the min. mark (B).

Top up, if necessary. See Changing the Coolant in Service / Every 6000 Hours.
