Lubricate Front Axle and U.J. Shafts (6150M and 6170M)

LX1045642-UN-08OCT10

LX1045643-UN-08OCT10

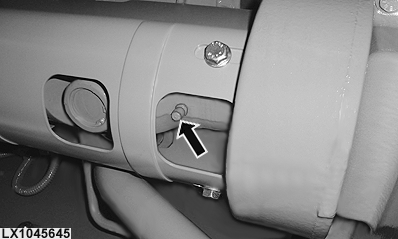

LX1045645-UN-08OCT10

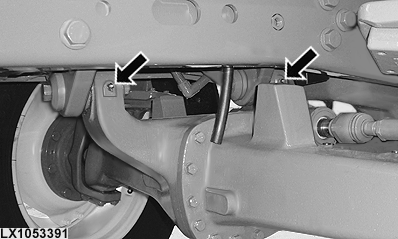

LX1053391-UN-28FEB12

6150M

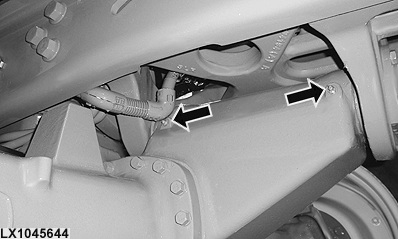

LX1045644-UN-18NOV10

6170M

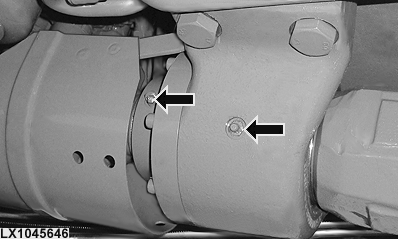

LX1045646-UN-08OCT10

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Apply John Deere multi-purpose grease to the grease fittings on the final drives (two on each drive), axle center section (with suspended axle, one fitting on each side of tractor), on the rear u.j. shaft and the front u.j. shaft (suspended axle only).

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.
