Indicator Lights and Displays

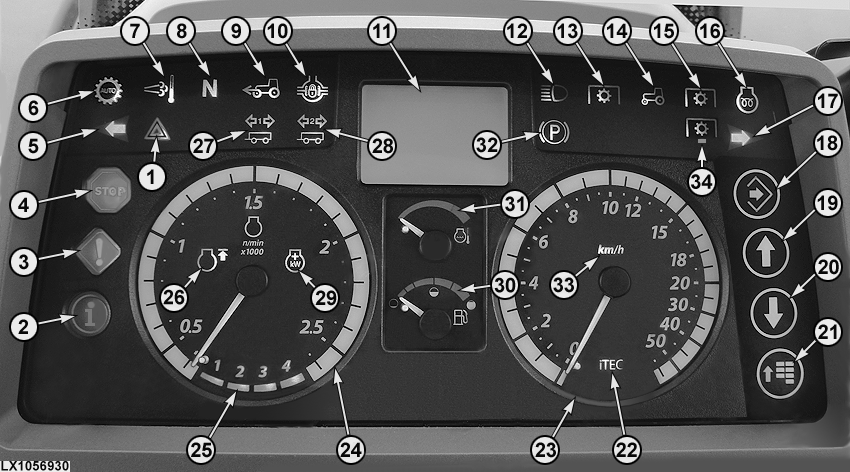

Indicator lights

LX1056930
LX1056930-UN-17SEP14

  1. Indicator light for hazard warning light1
  2. Blue INFO light - Lights up when there is a fault in an electrical components of the CAN bus such as of the hydraulic system or transmission. Review the error message on the digital display and eliminate the cause. See your John Deere™ dealer, if necessary.
  3. Yellow CAUTION Light - Flashes when a fault occurs (review the error message on the digital display).
  4. Red STOP light - Flashes when a serious fault occurs. Shut off the engine IMMEDIATELY. Review the error message on the digital display and eliminate the cause.
  5. Flashing indicator light on left - Flashes when turn-signal light for left turn is on and when hazard warning lights are on.
  6. Indicator light for automatic mode of transmission - Comes on when the automatic mode of the AutoQuad™ PLUS transmission is activated.
  7. Indicator light for exhaust filter cleaning - Comes on during the cleaning phase. On tractors with exhaust cleaning system only.
  8. The indicator light N lights up when the reverse drive lever is in neutral position.
  9. Front-wheel drive indicator light - Comes on when front-wheel drive is on.
  10. Differential lock indicator light - Comes on when differential lock is on.
  11. Digital display - Displays information for the operator and is used as a graphical user interface.
  12. The high beam indicator light will come on when switch is in "high beam" position.
  13. This light comes on when front PTO is switched on1.
  14. Comes on together with (13) and (15) to indicate whether front or rear PTO is switched on.
  15. This light comes on when rear PTO is switched on.
  16. Prewarm indicator light - Comes on when the key switch is turned one position to the right. Do not start the engine before the light has turned off. This light flashes when problems with the fuel system and the engine are present. On tractors equipped with a water-in-fuel sensor, this light flashes when water is present in the fuel filter.
  17. Flashing indicator light on right - Flashes when turn-signal light for right turn is on and when hazard warning lights are on.
  18. Confirm button
  19. Up arrow button
  20. Down arrow button
  21. Menu button
  22. Indicator light shows if iTEC™ is activated.
  23. Speedometer - Indicates travel speed in mph or km/h.
  24. Tachometer - Indicates crankshaft speed in revolutions per minute.
  25. Gear indicator:

    • With PowrQuad™ PLUS or AutoQuad™ PLUS transmission, figures 1-4 indicate which gear is selected.

    • The number of bars shown indicates the highest gear that is programmed.

  26. Indicator light is on when cruise control is active (FieldCruise™).
  27. Trailer turn signal indicator light - Flashes when a trailer is attached to the tractor. The indicator light flashes when turn-signal light is on and when hazard warning lights are on.
  28. Trailer turn signal indicator light - Flashes when a second trailer is attached to the tractor. The indicator light flashes when turn-signal light is on and when hazard warning lights are on.
  29. Display for Intelligent Power Management (power boost), if equipped.
  30. The fuel gauge shows the amount of fuel in the tank, from full to empty (end of red zone).

    NOTE: When the gauge goes from the green to the red, approx. 18% of the total capacity is left in the tank.

    NOTE: Never run the tank completely dry, otherwise you will have to bleed the fuel system.

  31. Coolant temperature indicator - Serves to

    monitor the coolant temperature. The coolant temperature is about 125 °C (257 °F) at the red/green threshold.

  32. Comes on when the park brake is activated.1
  33. Indicates whether speed is shown in mph or km/h.
  34. Comes on when remote control of rear PTO is activated.

Light test: As the engine is started, only those indicator lights whose corresponding functions are installed in the tractor should light up for about 1 second. If not, a defective LED or blown fuse may be the cause. Replace part.

Once the engine is running, the indicator lights should go out again.


Digital display

The digital display shows different types of information for the operator:

  • Time
  • Operating hours
  • Travel speed
  • Engine Speed
  • Rear PTO speed
  • Wheel slip in % (if equipped with radar)
  • Distance traveled
  • Current fuel consumption
  • Average fuel consumption
  • Total area covered (since beginning of measurement)
  • Area covered per hour

In addition, the digital display is used to make various settings. Refer to the descriptions of Intelligent Power Management, exhaust cleaning system, iTEC™ Basic and hitch.

1 not for North America
