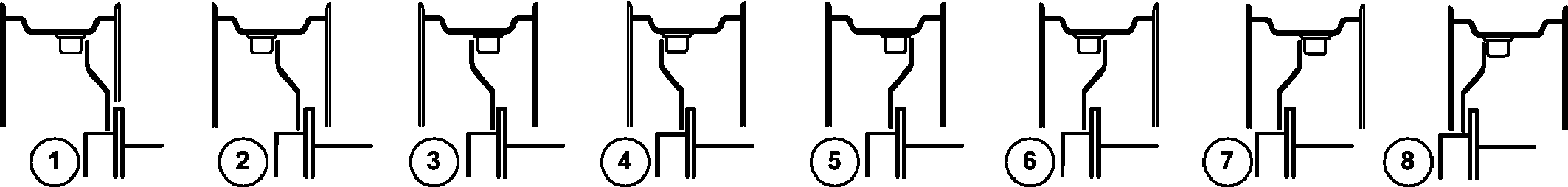

Spoorbreedte voorwielen instellen met velgen voor 8 posities

LX1053401-UN-07MAR12

	Instelling spoorbreedte bij levering	Instelling spoorbreedte (voorwielen) Velg en wielschotel monteren
Banden:		1	2	3	4	5	6	7	8
13.6R24	1716 mm	2022 mm	1920 mm	1818 mm	1716 mm	1622 mm	1520 mm	--**	--**
	(67.56 lb.)	(79.61 lb.)	(75.59 lb.)	(71.57 lb.)	(67.56 lb.)	(63.86 lb.)	(59.84 lb.)
13.6R28	1714 mm	2022 mm	1918 mm	1818 mm	1714 mm	1622 mm	1518 mm	--**	--**
	(67.48 lb.)	(79.61 lb.)	(75.51 lb.)	(71.57 lb.)	(67.48 lb.)	(63.86 lb.)	(59.76 lb.)
14.9R24	1716 mm	2022 mm	1920 mm	1818 mm	1716 mm	1622 mm	1520 mm	--**	--**
	(67.56 lb.)	(79.61 lb.)	(75.59 lb.)	(71.57 lb.)	(67.56 lb.)	(63.86 lb.)	(59.84 lb.)
14.9R28	1714 mm	2022 mm	1918 mm	1818 mm	1714 mm	1622 mm	--**	--**	--**
	(67.48 lb.)	(79.61 lb.)	(75.51 lb.)	(71.57 lb.)	(67.48 lb.)	(63.86 lb.)
16.9R24	1718 mm	2016 mm	1914 mm	1820 mm	1718 mm	1616 mm	--**--**	--**	--**
	(67.64 lb.)	(79.37 lb.)	(75.35 lb.)	(71.65 lb.)	(67.64 lb.)	(63.62 lb.)
340/85R24	1716 mm	2022 mm	1920 mm	1818 mm	1716 mm	1622 mm	1520 mm	--**	--**
	(67.56 lb.)	(79.61 lb.)	(75.59 lb.)	(71.57 lb.)	(67.56 lb.)	(63.86 lb.)	(59.84 lb.)
340/85R28	1714 mm	2022 mm	1918 mm	1818 mm	1714 mm	1622 mm	1518 mm	--**	--**
	(67.48 lb.)	(79.61 lb.)	(75.51 lb.)	(71.57 lb.)	(67.48 lb.)	(63.86 lb.)	(59.76 lb.)
360/70R24	1716 mm	2022 mm	1920 mm	1818 mm	1716 mm	1622 mm	1520 mm	1418 mm	--**
	(67.56 lb.)	(79.61 lb.)	(75.59 lb.)	(71.57 lb.)	(67.56 lb.)	(63.86 lb.)	(59.84 lb.)
380/70R24	1716 mm	2022 mm	1920 mm	1818 mm	1716 mm	1622 mm	1520 mm	--**	--**
	(67.56 lb.)	(79.61 lb.)	(75.59 lb.)	(71.57 lb.)	(67.56 lb.)	(63.86 lb.)	(59.84 lb.)
380/70R28	1714 mm	2022 mm	1918 mm	1818 mm	1714 mm	1622 mm	--**	--**	--**
	(67.48 lb.)	(79.61 lb.)	(75.51 lb.)	(71.57 lb.)	(67.48 lb.)	(63.86 lb.)
380/85R24	1716 mm	2022 mm	1920 mm	1818 mm	1716 mm	1622 mm	1520 mm	--**	--**
	(67.56 lb.)	(79.61 lb.)	(75.59 lb.)	(71.57 lb.)	(67.56 lb.)	(63.86 lb.)	(59.84 lb.)
380/85R28	1714 mm	2022 mm	1918 mm	1818 mm	1714 mm	1622 mm	--**	--**	--**
	(67.48 lb.)	(79.61 lb.)	(75.51 lb.)	(71.57 lb.)	(67.48 lb.)	(63.86 lb.)
420/70R24	1716 mm	2022 mm	1920 mm	1818 mm	1716 mm	1622 mm	--**	--**	--**
	(67.56 lb.)	(79.61 lb.)	(75.59 lb.)	(71.57 lb.)	(67.56 lb.)	(63.86 lb.)
420/70R28	1714 mm	2022 mm	1918 mm	1818 mm	1714 mm	1622 mm	--**	--**	--**
	(67.48 lb.)	(79.61 lb.)	(75.51 lb.)	(71.57 lb.)	(67.48 lb.)	(63.86 lb.)
420/85R24	1718 mm	2016 mm	1914 mm	1820 mm	1718 mm	1616 mm	--**	--**	--**
	(67.64 lb.)	(79.37 lb.)	(75.35 lb.)	(71.65 lb.)	(67.64 lb.)	(63.62 lb.)
440/65R24	1720 mm	2018 mm	1916 mm	1822 mm	1720 mm	1618 mm	--**	--**	--**
	(67.72 lb.)	(79.45 lb.)	(75.43 lb.)	(71.73 lb.)	(67.72 lb.)	(63.70 lb.)
480/65R24	1720 mm	2018 mm*	1916 mm	1822 mm	1720 mm	1618 mm	--**	--**	--**
	(67.72 lb.)	(79.45 lb.)*	(75.43 lb.)	(71.73 lb.)	(67.72 lb.)	(63.70 lb.)
480/65R28	1714 mm	2022 mm	1918 mm	1818 mm	1714 mm	--**	--**	--**	--**
	(67.48 lb.)	(79.61 lb.)*	(75.51 lb.)	(71.57 lb.)	(67.48 lb.)
480/70R24	1718 mm	2016 mm*	1914 mm	1820 mm	1718 mm	--**	--**	--**	--**
	(67.64 lb.)	(79.37 lb.)*	(75.35 lb.)	(71.65 lb.)	(67.64 lb.)
540/65R24	1718 mm	2016 mm*	1914 mm	1820 mm	1718 mm	--**	--**	--**	--**
	(67.64 lb.)	(79.37 lb.)*	(75.35 lb.)	(71.65 lb.)	(67.64 lb.)
* N I E T op de openbare weg. Volg verkeersvoorschriften op.
** Installatie in deze positie is niet toegestaan

BELANGRIJK: Volg instructies spoorbreedte voorwielen instellen met velgen voor 8 posities op.

OPMERKING: In sommige landen mag bij wegtransport een totale breedte van het voertuig van 2,55 m (100 in.) niet worden overschreden.
