Hydraulic Pick-Up Hitch (Electrically Actuated)

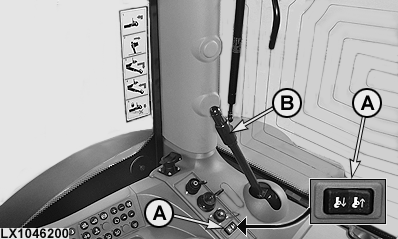

LX1046200-UN-14JUN11

LX1045867-UN-15FEB11

LX1045868-UN-15FEB11

A - Switch

B - Release Lever

1 - Hitch in Position for Attaching Trailer

2 - Hitch in Stored Position

This pick-up hitch can be operated via the rear hitch and switch (A).

1. Raise the draft links as high as they go and use switch (A) to retract the hitch hook fully (press the top part of the switch).

2. Pull release lever (B) and hold it until the hitch hook has moved from the stored position (lever remains in open position).

3. Use switch (A) to extend the hitch hook fully (press the bottom part of the switch).

4. Lower draft links/hitch hook to desired height.

5. Raise the draft links so that the hitch hook engages in the towing eye of the implement; then fully raise the pick-up hitch.

6. Use switch (A) to retract the hitch hook fully until it is fully locked (lever (B) returns to its starting position).

7. Lower the draft links.

8. Check that the hitch is locked correctly. If this is the case, it will not lower when the draft links are lowered and not extend when the switch is operated.

IMPORTANT: If the release lever is hard to operate or locking the hitch hook is not performed automatically (step 2 or step 6 above), have your John Deere dealer check the setting of the lift links or of the pick-up hitch hook.

CAUTION:

LX1045869-UN-15FEB11

With the hitch lowered, NEVER reach into the receiver opening (see arrow). Risk of injury!

NOTE: Hydraulic pick-up hitch components that are subject to wear can be checked during regular service work. See relevant "Service" section. Replace them if necessary.

Maximum permissible static vertical loads and towable loads are stated in the Specifications section.

LX1045870-UN-15FEB11

The part not required can be stored in a holder on the side-frame.
