After the First 4 and 8 Hours of Operation

Tighten front wheel retaining bolts/nuts (with front-wheel drive axles)

LX1056769-UN-12NOV12

6145R to 6195R

LX1056770-UN-12NOV12

6145R to 6215R

A - 480 Nm (355 lb-ft)

B - 210 Nm (155 lb-ft)

C - 480 Nm (355 lb-ft)

D - 310 Nm (230 lb-ft)

Tighten rear-wheel retaining bolts/nuts (with flanged axles)

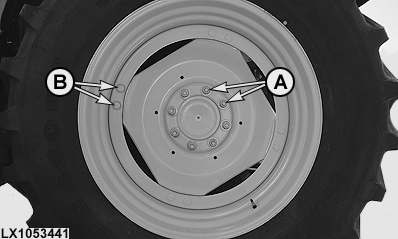

LX1053441-UN-21MAR12

Wheel with Square Wheel Dish - 6145R and 6155R

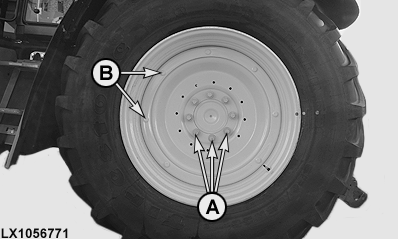

LX1056771-UN-12NOV12

Wheel with Round Wheel Dish - 6145R and 6155R

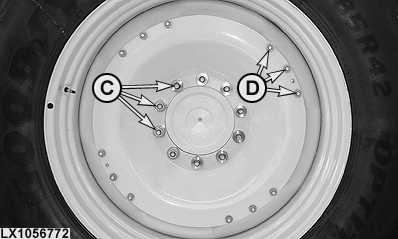

LX1056772-UN-12NOV12

Wheel with Waffle Rim - 6145R to 6215R

A - 500 Nm (370 lb-ft)

B - 210 Nm (155 lb-ft)

C - for 6145R and 6155R — 500 Nm (370 lb-ft)

C - for 6175R to 6155R — 600 Nm (445 lb-ft)

D - 310 Nm (230 lb-ft)

Tighten rear-wheel retaining bolts/nuts (with rack-and-pinion axles)

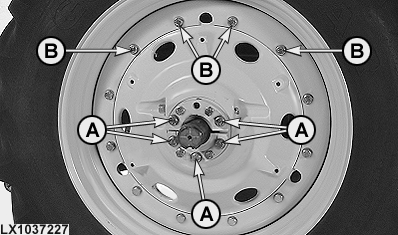

LX1037227-UN-02NOV05

Cast Hub with Cast Dish - 6145R to 6215R

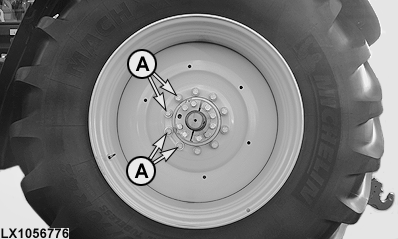

LX1056776-UN-13NOV12

Cast Hub with Steel Dish - 6175R to 6215R

A - 600 Nm (445 lb.-ft.)

B - 600 Nm (445 lb.-ft.)

Tighten screws of wheel weights

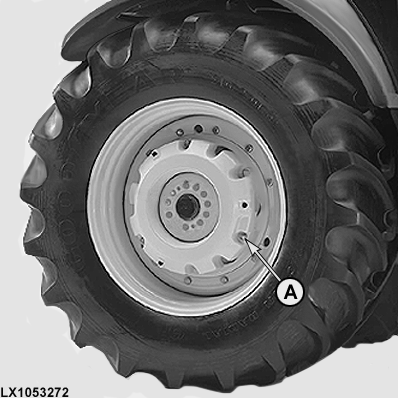

LX1053272-UN-19SEP11

• A - Hex screws M16, 310 N·m (230 lb.-ft.), 3 used
• A - Cap screws M20, 610 N·m (450 lb.-ft.), 3 used
