Lighting System - Overview of the Lights

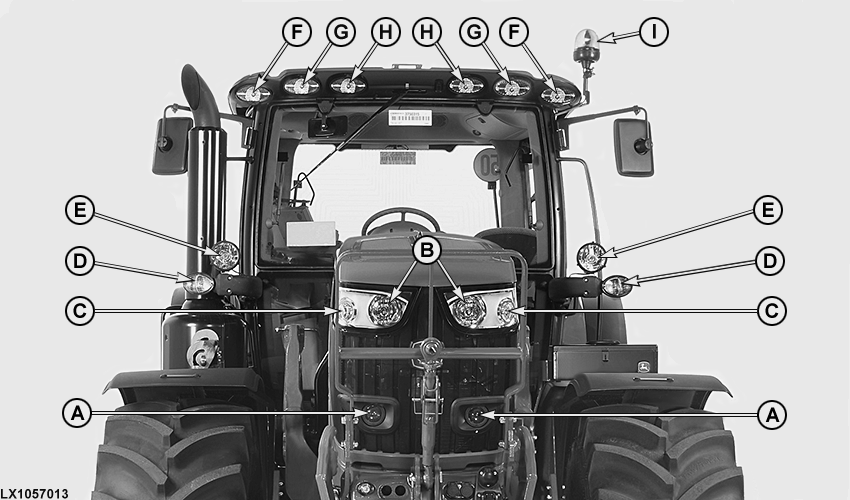

LX1057013-UN-12JUN13

A	Headlights (Low Beam)	F	Worklights1 (on Front Outer Roof, Both Sides)
B	Headlights (High Beam)
C	Worklights1	G	Worklights1 (on Front Center of Roof, Both Sides)
D	Turn-Signal and Clearance Lights (on Both Sides of Cab Frame)
E	Additional Headlight1 (Low and High Beam) or Worklight1 (on Both Sides of Cab Frame)	H	Worklights1 (on Front Inner Roof, Both Sides)
		I	Beacon Light1

NOTE: NO type H9 bulbs may be used in the worklights (C) in the front corner.

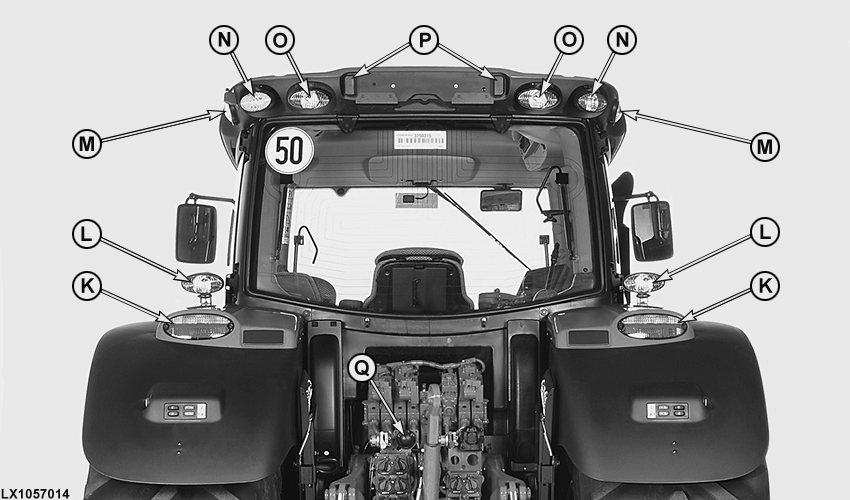

LX1057014-UN-12JUN13

K	Tail Lights/Brake Lights/Turn-Signal Lights (on Rear of Fenders, Both Sides)	O	Worklights1 (on Rear Inner Roof, Both Sides)
L	Worklights1 (on Rear of Fenders, Both Sides)	P	License Plate Light
M	Worklights1 (on Rear of Roof, Both Sides, Side-Facing)	Q	Seven-Terminal Trailer Connector for Lights
N	Worklights1 (on Rear Outer Roof, Both Sides)
