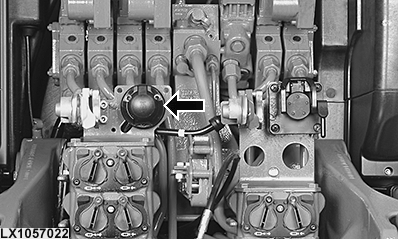

Seven-Pin Trailer Socket

LX1057022-UN-12JUN13

The socket is used to connect lights, turn signals and electrical devices installed on the trailer or implement. Always use auxiliary light on the towed implement when rear tractor signals and other lights are obscured.

NOTE: Suitable connectors can be obtained from your John Deere dealer.

NOTE: The road lights and worklights of an ISOBUS implement can be controlled via the ISOBUS socket. For more information, see "Lights - Worklights of the ISOBUS Implement" in the Section "Lights" and the relevant operator's manual of the ISOBUS implement.
