Air Brake System

LX1057089-UN-22JAN14

LX1045859-UN-07FEB11

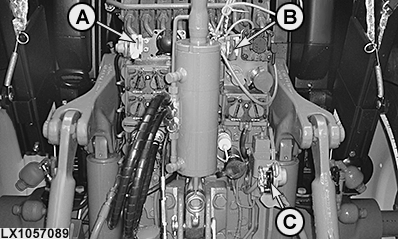

A - Yellow (dual-line brake)

B - Red (dual-line brake, supply)

C - Black (single-line brake, if equipped)

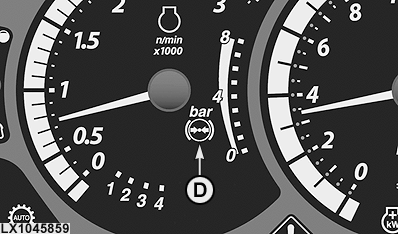

D - Warning Light (Air Pressure Too Low)

The air brake is available as dual-line system or as combined single-line and dual-line system. Trailers with dual-line brakes may be connected at connections (A) and (B). Trailers with single-line brakes may be connected at connection (C).

Ensure that the connections are clean before joining the compressed air hoses. Seal the connections with the dust caps whenever the hoses are disconnected.

CAUTION: The single-line brake may be used with trailers at speeds up to 25 km/h only.

When driving the tractor, keep within the legal speed limit.

IMPORTANT: The light (D) lights up red as long as the air pressure is too low.

To prevent undue wear on the brakes, observe the following points:

• Make sure pressure hoses are connected.
• When driving downhill, select same gear you would for driving uphill.
• Check the air brake system regularly to make sure that it is functioning correctly.

CAUTION: When operating with a trailer:

1. Set the trailer's load knob (if equipped) according to the weight of the trailer's load.
2. Check the compressed air tank every day for condensation (see Service - Daily or Every 10 Hours)! If condensation is detected, replace the air-drier cartridge.
3. When parking the tractor, always engage the park lock.

NOTE: Loss of pressure may cause the brake to become less effective. Operate the trailer in accordance with the manufacturer's instructions.
