Power Outlet Sockets on Premium Front Hitch

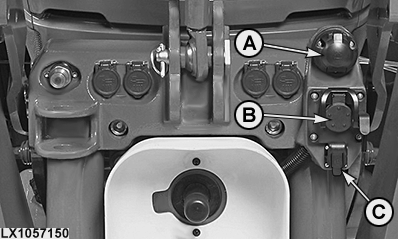

LX1057150-UN-06SEP13

NOTE: Illustration shows tractor with additional equipment.

A — Seven-terminal implement socket

The socket is used to connect lights, flashers and electrical devices installed on the implement. Always use auxiliary light on towed implement when tractor signals and other lights are obscured.

NOTE: Suitable connectors can be obtained from your John Deere dealer.

B — ISOBUS socket (ISB)

An implement meeting ISO Standard 11783 may be connected at socket (B).

C — 3-terminal power outlet socket

Terminal 15/30 of the 3-terminal power outlet socket provides a max. permanent direct current of 25 amps. Terminal 82 provides a max. permanent direct current of 5 amps. Terminal 31 is ground.
Turn key in key switch to the right to supply power to terminal 82. Terminal 15/30 is supplied with power even when the ignition is switched off.

IMPORTANT: When operating electrical consumers with high current draw, the maximum permitted current load of the supply circuit (25 amp) must not be exceeded.
