Additional Oil Reservoir - 6175R to 6215R

LX1045802-UN-22DEC10

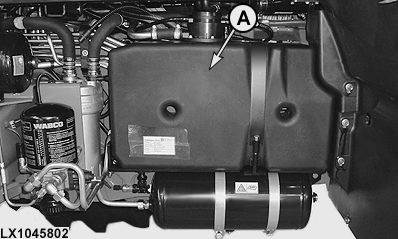

An additional oil reservoir (A) allows more oil to be withdrawn.

The maximum amount of oil that may be withdrawn is listed in the table.

Maximum permissible oil withdrawal ..............

55 L (14.5 U.S. gal.)

The additional oil may be used with large tipping trailers and in other applications which require a larger amount of oil.

NOTE: An additional oil reservoir brings advantages compared with overfilling of the transmission. See Oil Withdrawal in the Specifications section.
