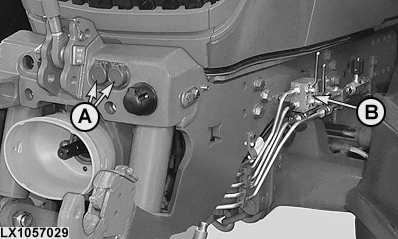

Front Hitch (Economy) - Controls

LX1057029-UN-08JUL13

LX1057403-UN-06MAY14

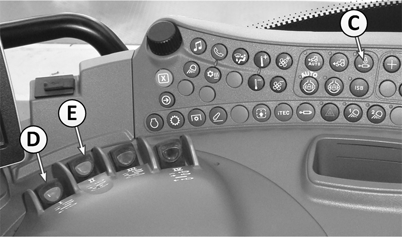

Front Hitch (Economy) - Side Console

LX1057404-UN-06MAY14

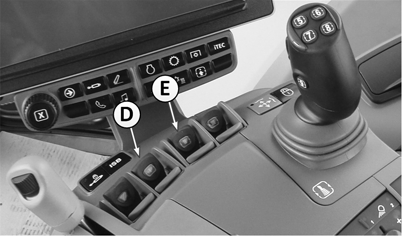

Front Hitch (Economy) - Controls with CommandARM™

A - Couplers - Selective Control Valve II

B - Front Hitch - Shut-Off Valve

C - Button for Locking the SCV Control Levers

D - Front Hitch (Raise/Lower) - Control Through SCV I

E - Front Hitch Couplers - Control Through SCV II

See “Hitch” section for more information.
