Front Hitch (Premium) - Controls

LX1057254-UN-10SEP13

LX1057392-UN-18DEC13

Operation with Multi-Function Lever

LX266796-UN-18MAR16

Operation without Multi-Function Lever

LX1057394-UN-15JAN14

Remote Control, Lift/Lower

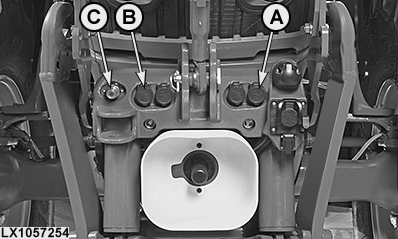

A - Couplers, Selective Control Valve XIV

B - Couplers, Selective Control Valve XV (Optional)

C - Pressure-Free Oil Return Circuit

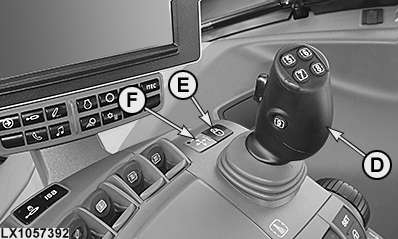

D - Multi-Function Lever

E - Lock Button, Multi-Function Lever ON/OFF

F - Indicator Light, Multi-Function Lever Enabled

G - Lock Button, Selective Control Valves ON/OFF

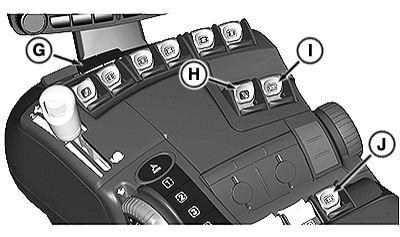

H - Control Lever, Lift/Lower Front Hitch and Float

I - Control Lever SCV XIV

J - Control Lever SCV XV (Optional)

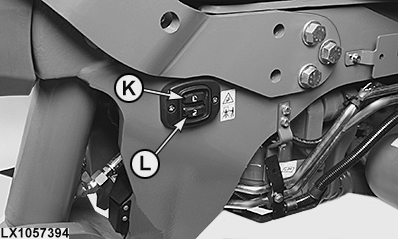

K - Switch for Lifting Front Hitch

L - Switch for Lowering Front Hitch

See “Hitch” section for more information.

NOTE: The remote control overrides the control lever in the cab.
