Front Hitch (Premium) - Set Rate-of-Drop

RXA0132258
RXA0132258-UN-22MAY13

Menu Button → Tractor Settings → Front Hitch

RXA0132458
RXA0132458-UN-28JUN13

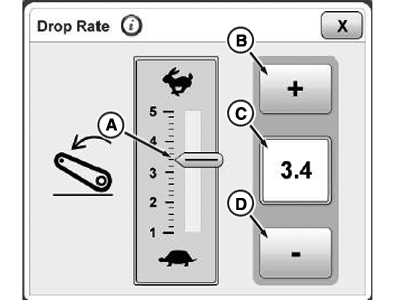

A - Rate-of-Drop

B - + Button

C - Display Field

D - — Button

  1. To set the rate of drop, select the menu button.

  2. Select tractor settings.

  3. Select front hitch.

  4. Select display field for rate-of-drop.

  5. Use the +/— buttons to set the desired rate of drop (A).

  6. To save, close page.

OULXA64,0003177-19-20131209
