Sockets — Overview, Cab with CommandArm™

LX1056963-UN-18NOV14

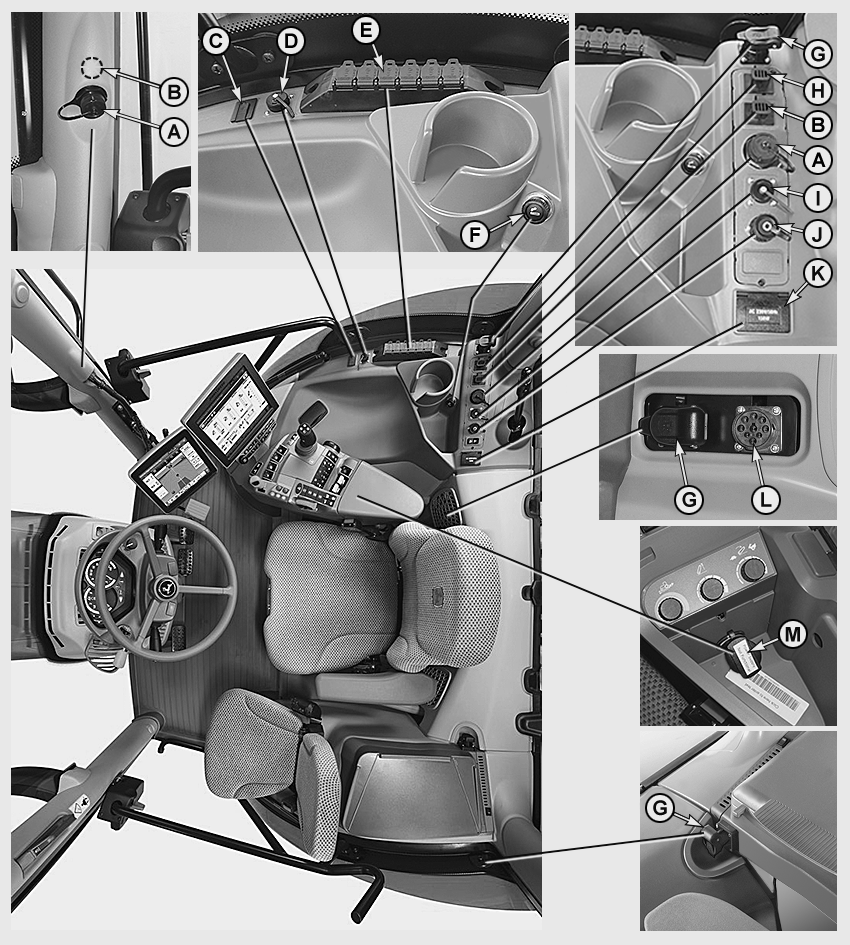

Cab Shown with CommandArm™ with Optional Equipment

A — Socket for GreenStar™ Display

B — Ethernet Socket for Universal Display

C — USB Service Connection for CommandCenter™

D — Video Camera Socket

E — 3-Terminal Power Outlet Socket Strip (12 Volt), (ECE)

F — 12-Volt Socket / Cigarette Lighter

G — 3-Terminal Power Outlet Socket (12 Volt), (ECE)

H — Socket for 2nd Monitor

I — ISOBUS Socket in the Cab

J — Signal Socket According to ISO Standard 11786

K — 230 or 115-Volt Socket (max. 150 Watt)

L — Service Socket (CAN Bus)

M — 12-Volt Socket (max. 120 Watt)

IMPORTANT: See the following pages for further information.
