Sockets — 3-Terminal Socket and 3-Terminal Power Outlet Socket Strip (12 Volt), (ECE)

LX1057497-UN-11DEC14

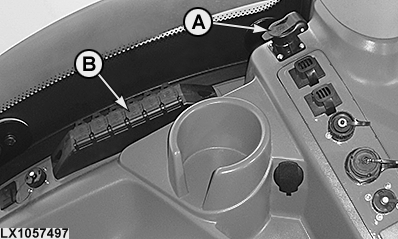

Sockets Shown on Side Console with CommandArm™

LX1045608-UN-06SEP10

LX1045609-UN-06SEP10

LX1017965-UN-10OCT97

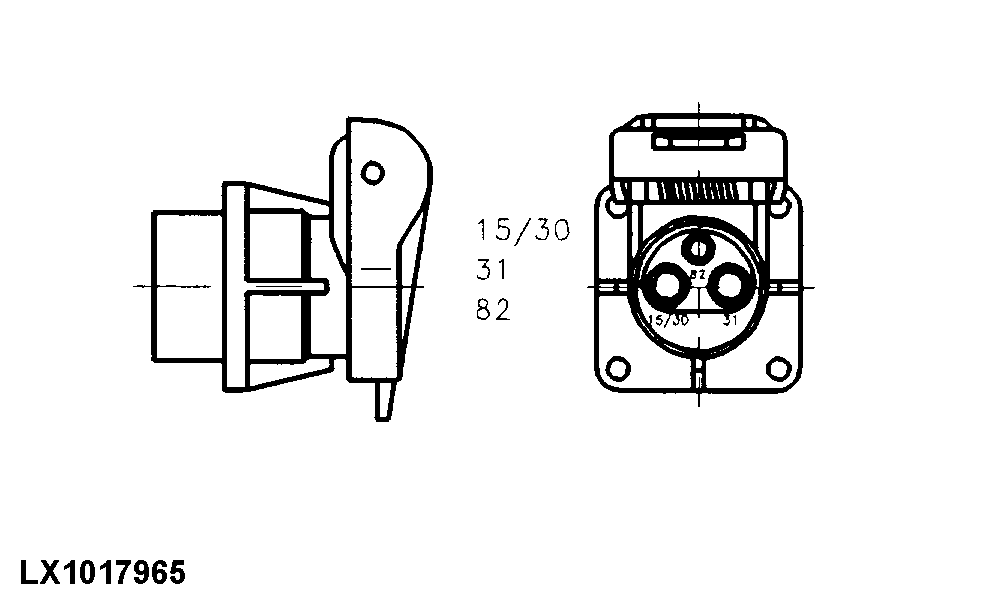

3-Terminal Power Outlet Socket (ECE)

LX1017911-UN-10OCT97

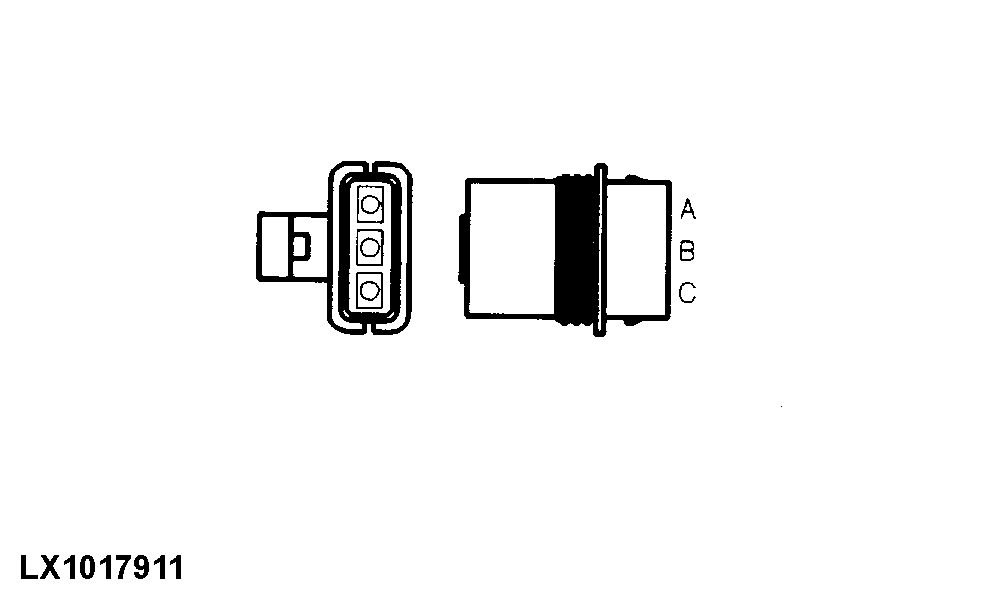

3-Terminal Power Outlet Socket of the Multiple Power Outlet Socket Strip (ECE)

A — 3-Terminal Power Outlet Socket (12 Volt), (ECE)

A maximum permanent direct current of 25 A (300 watt maximum) may be taken from pin 15/30 of the 3-terminal socket (A). A maximum permanent direct current of 5 A (60 watt maximum) may be taken from pin 82. Pin 31 is ground.
Turn key in key switch to the right to supply power to terminal 82. Pin 15/30 is supplied with power even when the ignition is switched off.

IMPORTANT: When operating electrical consumers with high current draw and using multi-outlet power strips, the maximum permitted current load of the supply circuit must not be exceeded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets (A) and (B).

B — 3-Terminal Power Outlet Socket Strip (12 Volt), (ECE)

The multiple power outlet socket strip (B) can be attached additionally between the door and the switch console. A maximum permanent direct current of 25 A (300 watt maximum) may be taken from pin A of the multiple power outlet socket strip. Pin B is ground. A maximum permanent direct current of 5 A (60 watt maximum) may be taken from pin C. Turn key in key switch to the right to supply power to pin C. Terminal A is supplied with power even when the ignition is switched off.
