Tread Widths for Rear Wheels with Rims for 16 Positions / Positions 1 to 8 - Flanged Axle (6155R)

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

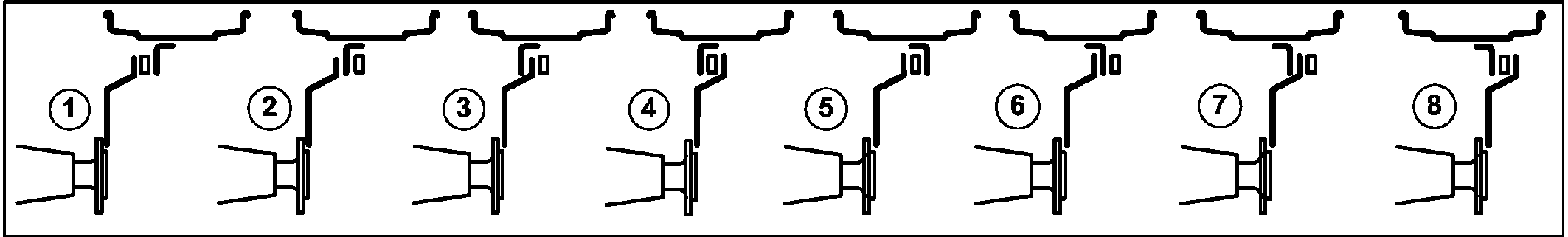

LX1053414-UN-16MAR12

Tread Widths for Rear Wheels with Rims for 16 Positions / Positions 1 to 8

		Tread width on delivery	Tread widths (rear wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
20.8R38	mm	1824	2028*	1998*	1958	1928	1824	1794	1754	1724
	in.	71.81	79.84*	78.66*	77.09	75.91	71.81	70.63	69.05	67.87
520/85R38	mm	1824	2028*	1998	1958	1928	1824	1794	1754	1724
	in.	71.81	79.84*	78.66	77.09	75.91	71.81	70.63	69.05	67.87
520/85R42	mm	1926	2036*	2006	1956	1926	1832	1802	1752	1722
	in.	75.83	80.16*	78.98	77.01	75.83	72.13	70.94	68.98	67.80
580/70R38	mm	1824	2028*	1998*	1958	1928	1824	1794	1754	1724
	in.	71.81	79.84*	78.66*	77.09	75.91	71.81	70.63	69.05	67.87
580/70R42	mm	1926	2036*	2006*	1956	1926	1832	1802	1752	1722
	in.	75.83	80.16*	78.98*	77.01	75.83	72.13	70.94	68.98	67.80
620/70R42	mm	1832	2036*	2006*	1956*	1926*	1832	1802	1752	—**
	in.	72.13	80.16*	78.98*	77.01*	75.83*	72.13	70.94	68.98
650/65R38	mm	1824	2030*	2000*	1958*	1928*	1826	1796	—**	—**
	in.	71.81	79.92*	78.74*	77.09*	75.91*	71.89	70.71
650/65R38	mm	1824	2028*	1998*	1958*	1928*	1824	1794	—**	—**
	in.	71.81	79.84*	78.66*	77.09*	75.91*	71.81	70.63
650/65R42	mm	1832	2036*	2006*	1956*	1926*	1832	1802	—**	—**
	in.	72.13	80.16*	78.98*	77.01*	75.83*	72.13	70.94
650/75R38	mm	1830	2036*	2006*	1956*	1926*	1832	1802	—**	—**
	in.	72.05	80.16*	78.98*	77.01*	75.83*	72.13	70.94
710/70R38	mm	1830	2036*	2006*	1956*	1926*	1832	1802	—**	—**
	in.	72.05	80.16*	78.98*	77.01*	75.83*	72.13	70.94
300/95R52	mm	1826	2030	2000	1958	1928	1826	1796	1754	1724
	in.	71.89	79.92	78.74	77.09	75.91	71.89	70.71	69.05	67.87
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations must be observed. ** Installation in this position is not allowed *** Not on tractors with a tank that encompasses the rear axle.
