Tread Widths for Rear Wheels with Rims for 16 Positions / Positions 9 to 16 - Flanged Axle (6155R)

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

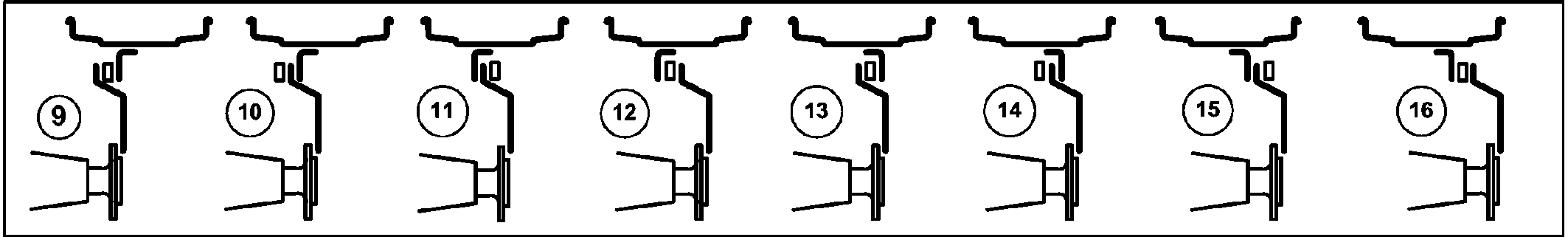

LX1053415-UN-16MAR12

Tread Widths for Rear Wheels with Rims for 16 Positions / Positions 9 to 16

		Tread width on delivery	Tread widths (rear wheels) Arrangement of rim and wheel dish
Tires:			9	10	11	12	13	14	15	16
20.8R38	mm	1824	—**	—**	—**	—**	—**	—**	—**	—**
	in.	71.81
520/85R38	mm	1824	1628***	—**	—**	—**	—**	—**	—**	—**
	in.	71.81	64.09***
520/85R42	mm	1926	1636	—**	—**	—**	—**	—**	—**	—**
	in.	75.83	64.41
580/70R38	mm	1824	—**	—**	—**	—**	—**	—**	—**	—**
	in.	71.81
580/70R42	mm	1926	—**	—**	—**	—**	—**	—**	—**	—**
	in.	75.83
620/70R42	mm	1832	—**	—**	—**	—**	—**	—**	—**	—**
	in.	72.13
650/65R38	mm	1824	—**	—**	—**	—**	—**	—**	—**	—**
	in.	71.81
650/65R38	mm	1824	—**	—**	—**	—**	—**	—**	—**	—**
	in.	71.81
650/65R42	mm	1832	—**	—**	—**	—**	—**	—**	—**	—**
	in.	72.13
650/75R38	mm	1830	—**	—**	—**	—**	—**	—**	—**	—**
	in.	72.05
710/70R38	mm	1830	—**	—**	—**	—**	—**	—**	—**	—**
	in.	72.05
300/95R52	mm	1826	1630	1600	1558	1528	1426	1396	—**	—**
	in.	71.89	64.17	62.99	61.34	60.16	56.14	54.96
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations must be observed. ** Installation in this position is not allowed *** Not on tractors with a tank that encompasses the rear axle.
