Tread Widths for Rear Wheels with Rims for 16 Positions / Positions 9 to 16 (Heavy-Duty Type) - Flanged Axle (6155R)

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

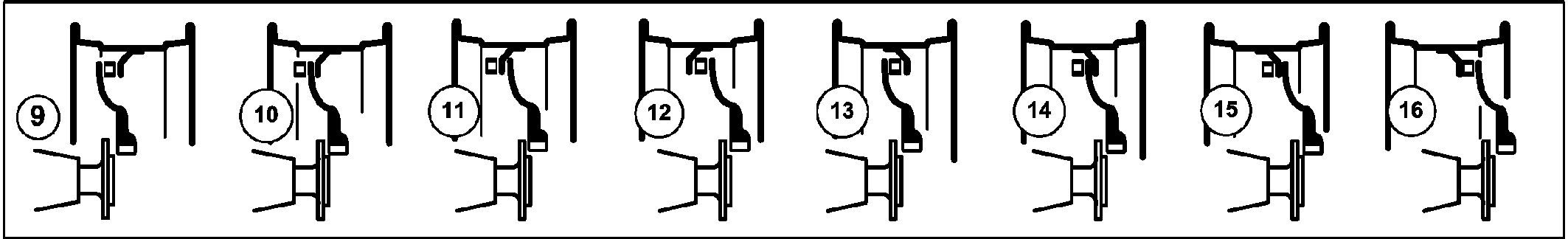

LX1053417-UN-16MAR12

Tread Widths for Rear Wheels with Rims for 16 Positions / Positions 9 to 16 (Heavy-Duty Type)

	Tread width on delivery	Tread widths (rear wheels) Arrangement of rim and wheel disk
Tires:		9	10	11	12	13	14	15	16
520/85R42	1926 mm	1636 mm	—**	—**	—**	—**	—**	—**	—**
	(75.83 in.)	(64.41 in.)
v 580/70R42	1926 mm	—**	—**	—**	—**	—**	—**	—**	—**
	(75.83 in.)
620/70R42	1832 mm	—**	—**	—**	—**	—**	—**	—**	—**
	(72.13 in.)
650/65R42	1832 mm	—**	—**	—**	—**	—**	—**	—**	—**
	(72.13 in.)
650/75R38	1830 mm	—**	—**	—**	—**	—**	—**	—**	—**
	(72.05 in.)
710/70R38	1830 mm	—**	—**	—**	—**	—**	—**	—**	—**
	(72.05 in.)
* Total vehicle width greater than 2.55 m (100 in.); the regional road traffic licensing regulations must be observed. ** Installation in this position is not allowed
