Three-Piece Front Axle (Version 2) — Tread Widths for Front Wheels with Rims for 8 Positions - 6175R

LX1057503-UN-13MAY15

Three-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 8 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Three-Piece Front Axle (Version 2) — Overview of Axle Category and Axle Type”
2. “Three-Piece Front Axle (Version 2) — Adjust the Fixed Fenders and Steering Stop”
3. “Preventing Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

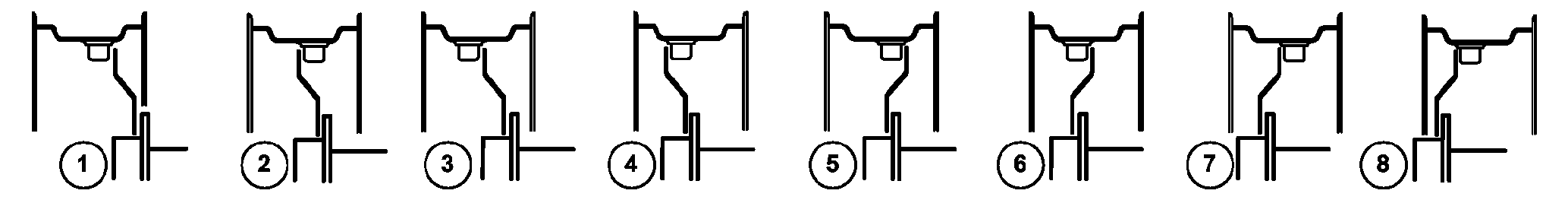

LX1056921-UN-21AUG13

		Tread width on delivery	Tread widths (front wheels) Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
420/85R30	mm	1844	2244*	2140*	2112*	2008	1844	1740	1712	1608
	in.	72.6	88.3*	84.3*	83.1*	79.1	72.6	68.5	67.4	63.3
460/85R30	mm	1842	2242*	2138*	2110*	2006	1842	1738	1710	1606**
	in.	72.5	88.3*	84.2*	83.1*	79.0	72.5	68.4	67.3	63.2**
480/70R30	mm	1844	2244*	2140*	2112*	2008*	1844	1740	1712	1608**
	in.	72.6	88.3*	84.3*	83.1*	79.1*	72.6	68.5	67.4	63.3**
540/65R30	mm	1844	2244*	2140*	2112*	2008*	1844	1740	1712	1608**
	in.	72.6	88.3*	84.3*	83.1*	79.1*	72.6	68.5	67.4	63.3**
600/65R28	mm	1844	2244*	2140*	2112*	2008*	1844	1740	1712**	1608**
	in.	72.6	88.3*	84.3*	83.1*	79.1*	72.6	68.5	67.4**	63.3**
600/65R30	mm	1842	2242*	2138*	2110*	2006*	1842	1738**	1710**	1606**
	in.	72.5	88.3*	84.2*	83.1*	79.0*	72.5	68.4**	67.3**	63.2**
600/70R28	mm	1842	2242*	2138*	2110*	2006*	1842	1738**	1710**	1606**
	in.	72.5	88.3*	84.2*	83.1*	79.0*	72.5	68.4**	67.3**	63.2**
* Total vehicle width greater than 2.55 m; the regional road traffic licensing regulations or other applicable regulations must be observed. ** Tread width and adjustment of the steering stop is possible only with steering stop AL225331. See also “Three-Piece Front Axle (Version 2) — Adjust the Pivoting Fenders and Steering Stop” for the relevant front axle.
