Tread Widths for Rear Wheels with Rims for 2 Positions - Rack-and-Pinion Axle (6155R)

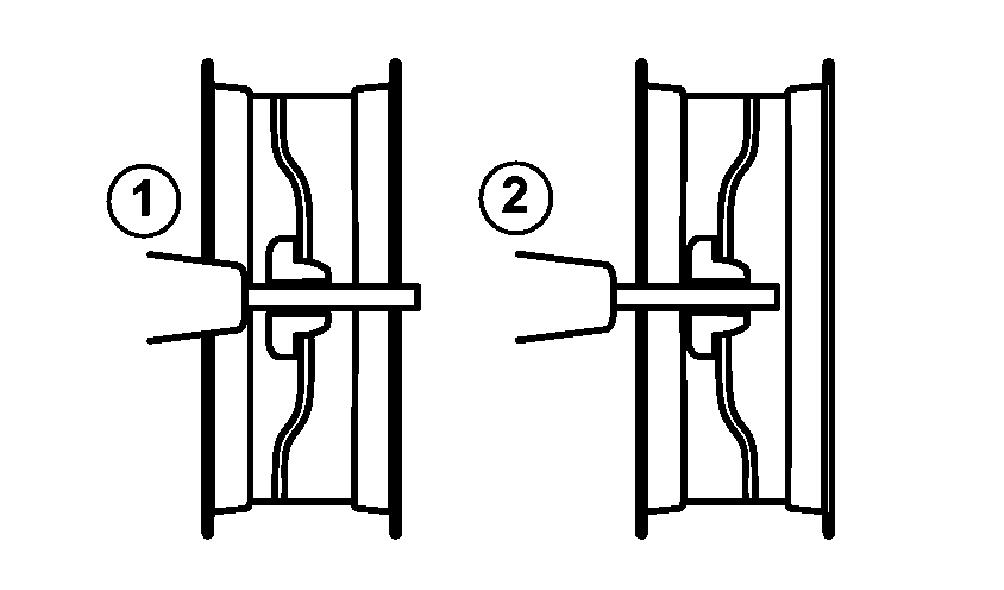

LX1056800-UN-29OCT12

Tread Widths on Rear Wheels - Rack-and-Pinion Axle

IMPORTANT: Comply with tread adjustment instructions, and tighten wheel bolts. See Tighten Rear Wheel Bolts (with Rack-and-Pinion Axle).

IMPORTANT: After adjusting tread, check that the wheels can turn freely.

Do NOT let tires come into contact with draft links or lift links. The gap between lift links and tires can be increased by installing the lift links in the front holes of the draft links.

When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.

If there is still contact with the draft links or lift links despite all these measures, tread width must be increased.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

		Tread widths (rear wheels) Arrangement of rim and wheel dish
			Short rack-and-pinion axles	Medium rack-and-pinion axles	Long rack-and-pinion axles
Tires:		Minimum (1)	Maximum (2)	Maximum (2)	Maximum (2)
520/85R42	mm	1666	2395*	2651*	—
	in.	65.6	94.3*	104.4*
580/70R42	mm	1666	2395*	2651*	—
	in.	65.6	94.3*	104.4*
620/70R42	mm	1736	2449*	2705*	—
	in.	68.3	96.4*	106.5*
650/65R38	mm	1757	2449*	2705*	—
	in.	69.2	96.4*	106.5*
650/65R42	mm	1757	2449*	2705*	—
	in.	69.2	96.4*	106.5*
650/75R38	mm	1757	2449*	2705*	—
	in.	69.2	96.4*	106.5*
710/70R38	mm	1796	2449*	2705*	—
	in.	70.7	96.4*	106.5*
* Total vehicle width greater than 2.55 m; the regional road traffic licensing regulations or other applicable regulations must be observed.
