Emergency Brake System

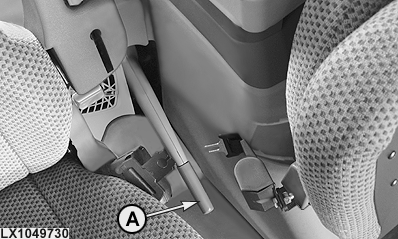

LX1049730-UN-20APR10

In the event of service brake failure, the emergency brake system can be used to brake the tractor. To do this, pull lever (A) up to obtain a braking effect.

IMPORTANT: The emergency brake system operates only when the hydraulic system is running.

The emergency brake must NOT be used as park brake.

The park brake must be used to park the tractor.

When parking, the trailer brake is applied via the park lock lever and not via the emergency brake.
