Multiple Displays

PC15323-UN-20MAY13

Multiple Displays

Generation 4 CommandCenter™ may be configured to run with the following John Deere displays connected at corner post.

• Original GreenStar™ Display (without Mobile Processor)
• GreenStar™ 2 1800 Display
• GreenStar™ 2 2600 Display
• GreenStar™ 3 2630 Display

Some applications, such as AutoTrac™, cannot run on both displays at the same time.

Activations do not transfer between displays. Second display must have its own activations to run AMS applications.

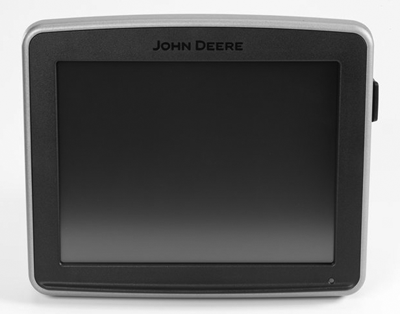

PC20416-UN-12MAY15

GS3 2630 Display

1. Ensure that key switch and CommandCenter™ are off.

2. Attach display harness to corner post connector and 26-pin display connector to back of display.

3. Turn key switch on.

4. CommandCenter™ display searches for second display on implement CAN bus for approximately 60 seconds. If CommandCenter™ was previously in Single Display Mode, it displays a message stating, “Multiple Displays Detected”.

5. Select a configuration preset:

   Single Display

   • Do NOT use this option in this scenario. This mode is only used if second display is not installed.



   Multiple Display – Machine Only

   • Precision Ag Applications and ISOBUS implements only appear on second display, not CommandCenter™. Use this option when connected to an ISOBUS implement with Auxiliary Reconfigurable Control.



   Multiple – Implement Viewer

   • Precision Ag Applications appear on second display.
   • ISOBUS implements appear on CommandCenter™ or second display depending on the “Next VT display” setting of implement. NOTE: If ISOBUS implement does not have “Next VT display” function, implement appears on display that starts up first.




   Multiple Display – Precision Ag Applications

   • Precision Ag Applications appear on CommandCenter™
   • ISOBUS implements appear on second display or CommandCenter™ depending on the "Next VT display" setting of implement.



   Advanced Setup

   • Manually set configurations.



   Confirm Display Settings

   • Run on THIS display: Precision Ag Applications are enabled on CommandCenter™. Change display settings on other display. Message displays each time CommandCenter™ is powered up if GreenStar™ applications are not disabled on other display.
   • Run on OTHER display: Precision Ag Applications are disabled on CommandCenter™. Use GreenStar™ applications on other display.



   Change Display Settings

   When display settings are changed, corresponding changes must be made to the other display.

   If either of these modes is selected:

   • Multiple Display – Precision Ag Applications or Single Display: Disable GreenStar™ and task controller on other display.
   • Single Display: Either disable GreenStar™, task controller, and implement bus virtual terminal (VT) on other display, or disconnect other display.



   To access multiple display settings on other GreenStar™ displays:

   • GreenStar™ 3 2630: Select Menu button > Display button > Diagnostics softkey > Multiple Displays tab > Change Settings button.
   • GreenStar™ 2 2600: Select Menu button > Display button > Diagnostics softkey > ISOBUS tab.
   • GreenStar™ 2 1800: Select Menu button > Display button > Settings softkey > Multiple Displays softkey.



6. Cycle key switch off and on to save settings.

Removing a GS2 or GS3 Display

1. Ensure that key switch and CommandCenter™ are off.

2. Detach display harness from 26-pin display connector at back of display.

3. Turn key switch on.

4. CommandCenter™ display searches for second display on Implement CAN Bus for approximately 2—3 minutes. If CommandCenter™ was previously in one of the Multiple Display Modes, it displays a message stating, “Second Display Not Found”.

5. Cycle key switch off and on to save settings.

Operating AutoTrac™ on CommandCenter™

NOTE: Generation 4 OS software updates 2015-1 (8.12.2500-17) and 2015-2 (10.0.49-59 or 10.0.49-65) disables Precision Ag Applications when a secondary GreenStar™ display is detected. Disconnect GreenStar™ display inside cab to operate Precision Ag functions on Generation 4 CommandCenter™ with these software versions.

After installing a GS3 2630 Display, AutoTrac™ defaults to that display. Follow these instructions to run AutoTrac™ on CommandCenter™.

NOTE: After procedure, GS3 2630 Display will not run any GreenStar™ applications, including Section Control.

1. Ensure CommandCenter™ is in Single Display Mode and GS3 2630 Display is unplugged. Turn key switch off.

2. Plug in GS3 2630 Display and turn key switch on.

3. When CommandCenter™ boots up, select Multiple – Compatibility Mode. Reboot display.

4. On GS3 2630 Display, select Menu button > Display button > Diagnostics softkey > Multiple Displays tab. Turn GreenStar™ application off. Depending on configuration, display may reboot.

5. On CommandCenter™, select Display and Sound application > Multiple Displays tab. Turn Precision Ag Applications on. Reboot display.

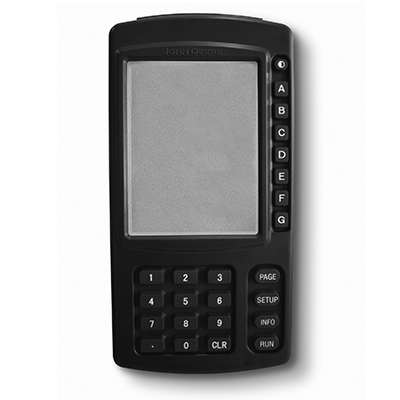

PC20417-UN-12MAY15

Original GreenStar™ Display

Original GreenStar™ display can be used for non-guidance functions, such as monitoring a SeedStar™ 1 planter.

NOTE: Mobile Processor is not compatible. Do not connect to CommandCenter™.

1. Ensure that key switch and CommandCenter™ are off.

2. Attach display harness to corner post connector and display connector.

3. Turn key switch on.

4. Ensure that Tracking is off on Original Display. See Original Display manual for instructions.

IMPORTANT: Ensure that tracking has not been turned on since last reprogram or reset of display memory.

To clear display memory, press and hold E, 2, and Clear buttons and reboot. This procedure clears all data stored on display.
