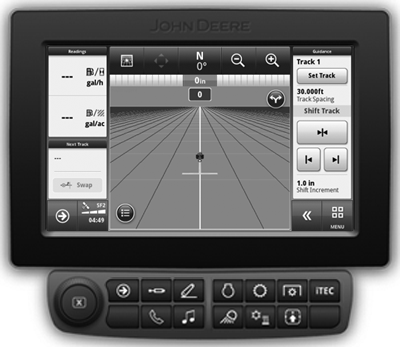

Generation 4 CommandCenter™

PC17356-UN-03DEC13

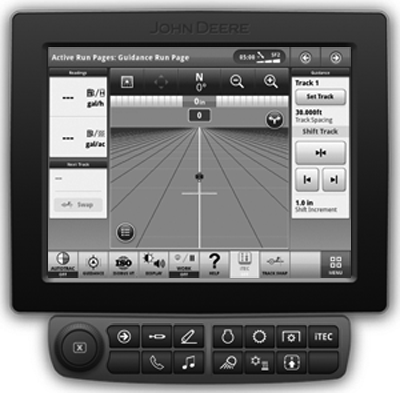

4100 CommandCenter™

PC17355-UN-03DEC13

4600 CommandCenter™

The John Deere Generation 4 CommandCenter™ is designed for maximum ease of use and productivity. One software system provides commonality while hardware options provide a range of price and functionality. The CommandCenter™ display is attached to the CommandARM™. There are 7 and 10 inch display options available.

NOTE: Software in Generation 4 CommandCenter™ is on processor, not display.

4100 CommandCenter™ (7 Inch)

• Run Page Modules same as 10 inch display
• Shortcut Softkeys must be expanded to view.

4600 CommandCenter™ (10 Inch)

• Title Bar displays currently viewed Run Page
• Large Status Center provides more information
• Shortcut Softkeys are always visible.
